M60 wiring help.

[s1oww]

I gave brought an unfinished m60 e30. It's so hard knowing what's what when you've not done it all yourself.
I'm looking to get my rev counter and temp gauge working.

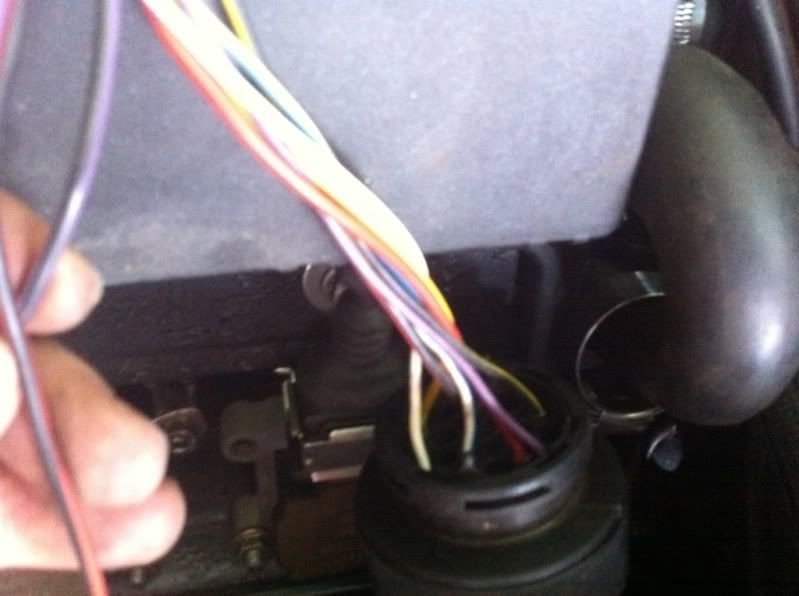

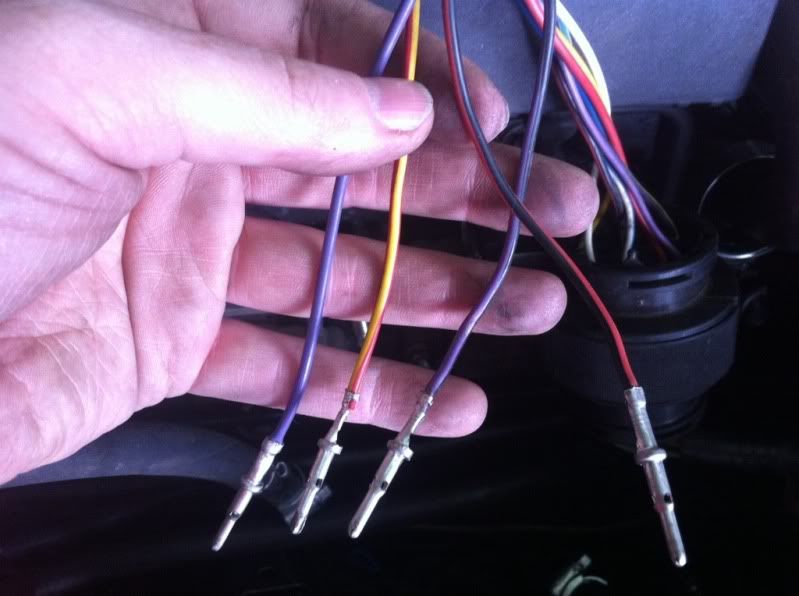

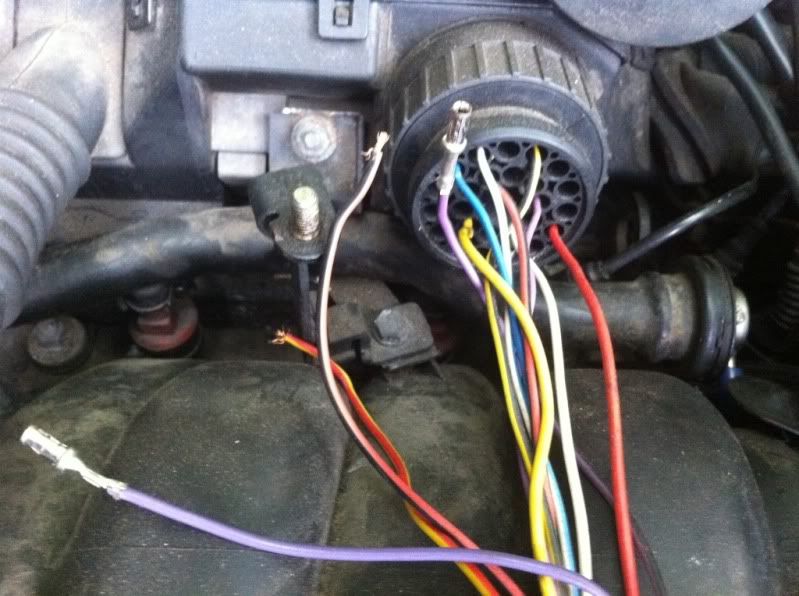

Also can someone tell me what these wires do?





I'm told this is a converter to make the STD rev counter work, no idea where to start with it.



If someone has a pic of the front of the engine with the drive belt fitted that would be great.

[20vt]

same prob anyone can help here??

[Mars]

Converter:
red: 12V +
orange: ground
white: rev counter signal from engine
yellow: signal to rev counter

[20vt]

where can i buy it???

[Darrenr]

Yea im intrested in rev counter convert too?

[Mars]

This converter is build by german guy Stifter. This is his mail: stifter.homer [at] freenet.de

You can also buy fully adapted clusters from Gert:
gert.kupfer [at] gmx.de
But in time he is very busy.

[fixedwheelnut]

On line TIS repair manuals http://tis.spaghetticoder.org/


The page for M60 V8 belt replacement
http://tis.spaghetticoder.org/s/view.pl?1/00/11/35
