Not sure if the mods want to make this a sticky but I've noticed quite a few threads now from people asking "what headunit would my e30 have come with when new?"

We have to remember that back in the day, BMW charged you for every option or "nicety". More often than not your car would have come with a blanking plate where your would have expected to find a series of knobs and buttons that when you fiddled with, music or speech would have appeared!

Therefore almost all of the headunits that your car's had when new were either dealer fit from the options below OR the original owner drove the car (in silence) to a place like Road Radio where some knob would molest your very expensive new cars loom, just so you could listen to your newly recorded Wham cassette. Or if you were a rich yuppy, your CD's.

So here goes.


JAN 1989

Dealer Fit KEXM700 with GM1000 amp and CDXM100 6 disc fitted to 325i owned by Paul "the diddler".



==========================================================================

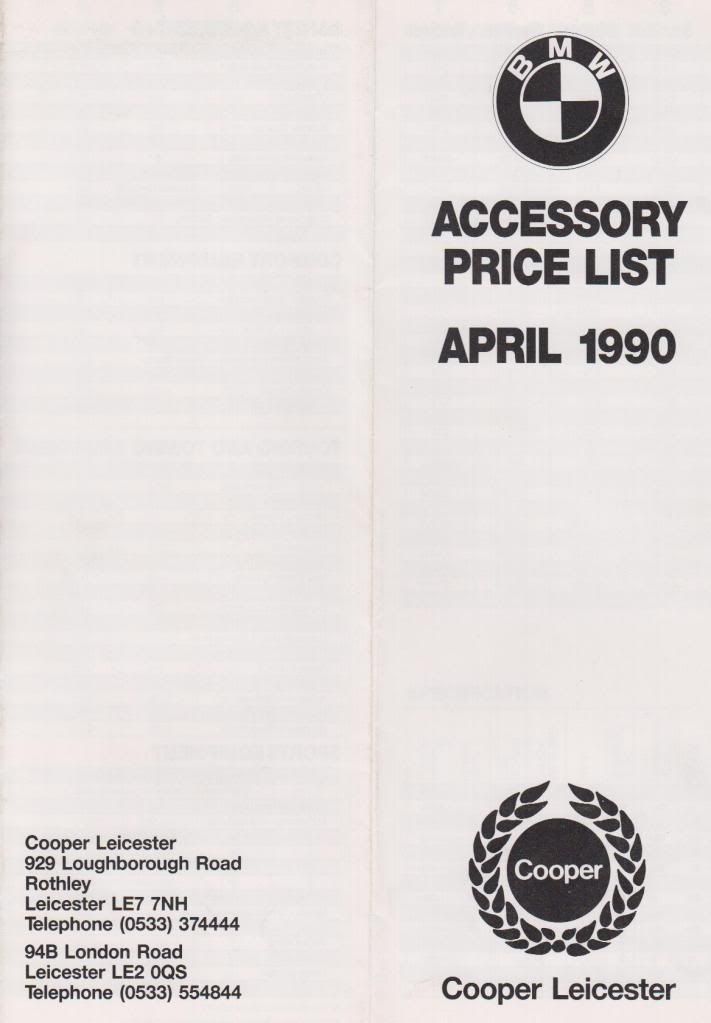

APRIL 1990 Note:

The GM1000 amp above does not show on the accessories listings for 1990 and the Pioneer KEXM700 and CDXM100 has been replaced by the M800 and M70 respectively.

The typo under the Pioneer KEH 4000RDS. I believe this should read £513

Any Pioneer with the prefix M before the unit ID number was compatible with the newly introduced "M" series of CD changers (of which I have an M30 version with 2 6 disc cassettes in my loft winkeye )

The Pioneers DEH (a single CD Headunit) and KEX were component units, i.e. you needed a seperate Amplifier to power them.

The "Stalk Equaliser" was a Blaupunkt (one of which Barry has awaiting install in the infamous Sport)




And heres what they look like.

The Blaupunkts

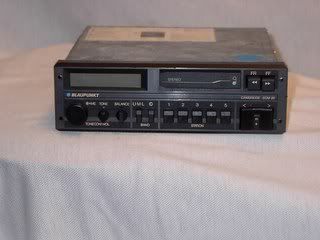

Cambridge

Melbourne

Granada

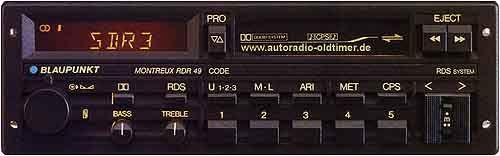

Montreaux

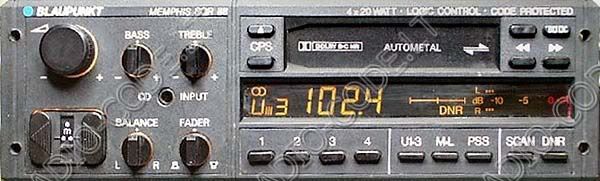

Memphis

and although not a dealer option, a very few got one of these if your city bonus was healthy in 1990. The infamous, iconic, legend that is. the NEW YORK

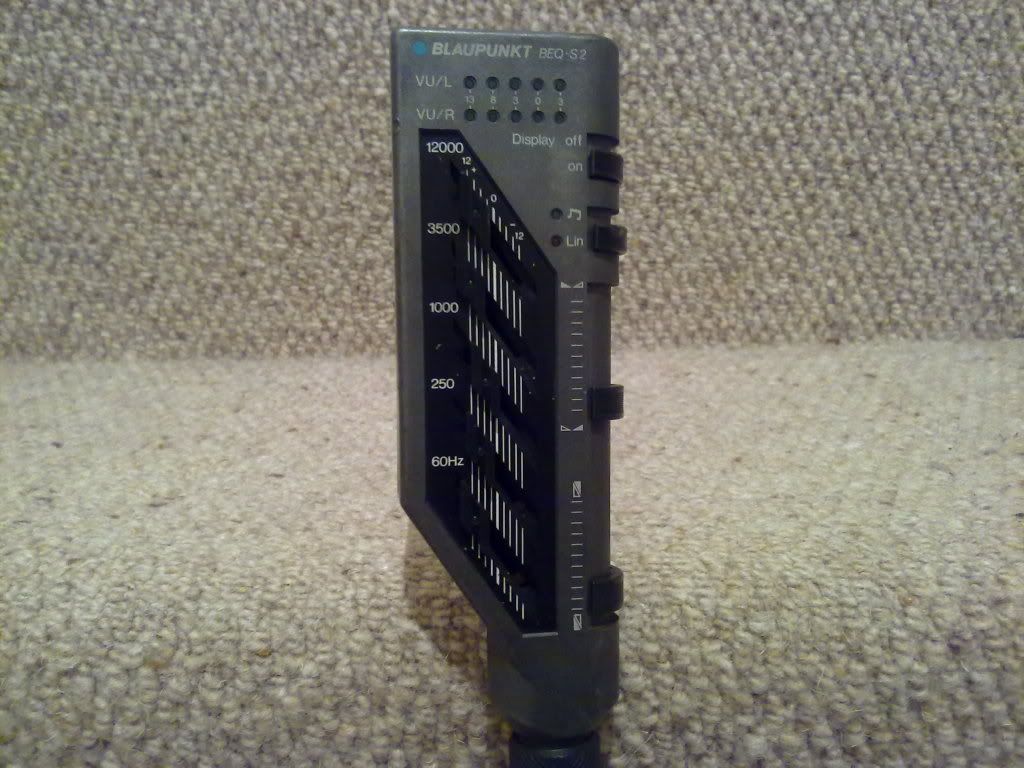

Heres the Stalk equaliser



The PIONEERS.

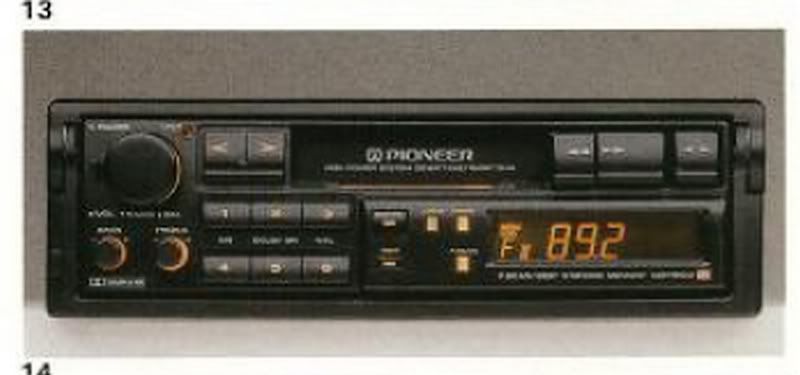

KEH5100B

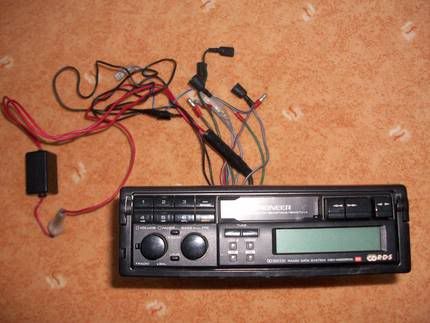

KEH4000RDS

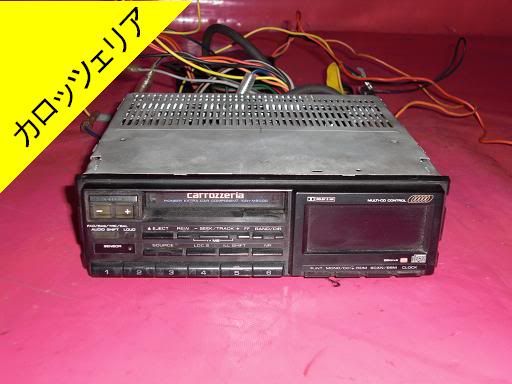

KEHM5000B

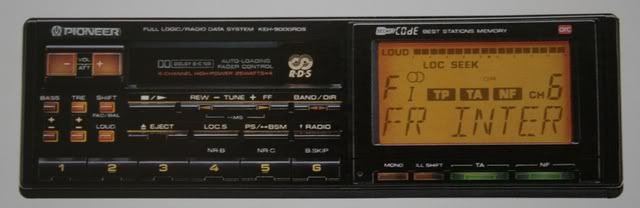

KEH9000RDS

DEH55 CD headunit. Looks almost modern?

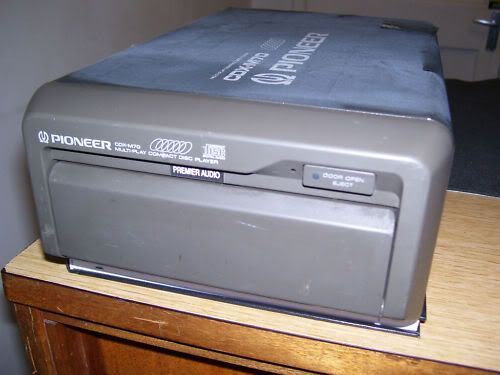

and the top of the range KEX M800 with it's CD changer. These were bloody HOOOOGE and took up half the boot!
Remember "£1275 sir to put in your 325i" hence not meny got them!

==========================================================================


Any more years for me to add?
Last edited by B7 on Mon Jan 24, 2011 9:02 pm, edited 6 times in total.
B7's Motto. "If it's French, BURN IT!!!!!!"
StuBeeDoo
Engaged to the E30 Zone
Engaged to the E30 Zone
Posts: 6756
Joined: Sat Feb 05, 2005 11:00 pm
Location: Up My Own Arse

Sun Jan 23, 2011 9:17 am

Good post. :D

Back in the mid-'80s, I worked for an auto electrical firm and one or other of our mobile fitters was almost permanently at Kingsworthy BMW (sadly no longer, AFAIK) fitting Pioneer stuff in new cars.
This is why I no longer drive an E30......

Jim320i
E30 Zone News / COTM Team
E30 Zone News / COTM Team
Posts: 10627
Joined: Sun Oct 25, 2009 11:00 pm
Location: Leicestershire
Contact:

Sun Jan 23, 2011 9:43 am

I would like a phone fitted. :D Great post B7. Means everyone is gonna be trawling Ebay for em now though. :? :D
B7
E30 Zone Team Member
E30 Zone Team Member
Posts: 15846
Joined: Tue Feb 13, 2007 11:00 pm
Location: Surrey / West Sussex

Sun Jan 23, 2011 10:24 am

OKAY. HERES A PLAN.

If anyone out there has accessory brochures from OTHER years and can scan them. Send the scans to me at tmal.white@btconnect.com and I will upload to the original post. See if we can get a copy from every year of manufacture!!! :mad:

Then we have a quick view of what came in what year.

I also plan to find images of various units available at the time for reference.
B7's Motto. "If it's French, BURN IT!!!!!!"
beemerbird
Married to the E30 Zone
Married to the E30 Zone
Posts: 8620
Joined: Mon Mar 24, 2008 11:00 pm
Location: Suffolk

Sun Jan 23, 2011 4:56 pm

Great stuff, Trev. This should have mindless posts (like mine here :wink: ) pruned out then deffo for the WIKI. Good work.
If it ain't broke, fix it till it is
DaveD
E30Zone Wiki Specialist
Posts: 5129
Joined: Tue Jan 11, 2005 11:00 pm
Location: Sheffield

Mon Jan 24, 2011 11:15 am

email sent...60 pages ..enjoy :D
Ziggy
E30 Zone Team Member
E30 Zone Team Member
Posts: 11534
Joined: Mon Jan 10, 2005 11:00 pm
Location: floating round my tin can...

Mon Jan 24, 2011 12:49 pm

Stuck! Nice one :thumb:
E30 in need of wiring loom smoke since April '11...
B7
E30 Zone Team Member
E30 Zone Team Member
Posts: 15846
Joined: Tue Feb 13, 2007 11:00 pm
Location: Surrey / West Sussex

Mon Jan 24, 2011 4:21 pm

Thanks Ziggy.

Glad people think it's of use.

I'm gradually getting photos together of the various head units available. Will post as and when I find examples.

Dave. Thanks for the brochure. Excellent reading but no head units that I could see :? . Will make a nice addition to my file though :D
Last edited by B7 on Mon Jan 24, 2011 8:58 pm, edited 1 time in total.
B7's Motto. "If it's French, BURN IT!!!!!!"
The_Diddler
Love it up the more door !
Posts: 3619
Joined: Tue May 27, 2008 11:00 pm
Location: Tamworth, Staffs Lovely!!!!!!

Mon Jan 24, 2011 7:41 pm

Trev

Got my Jan 89 Pioneer thats in my Misano turd set up as below:

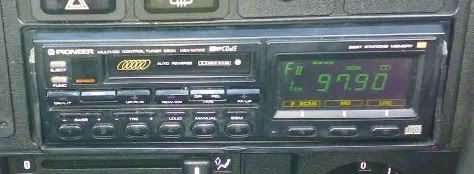

KEX-700B Head Unit

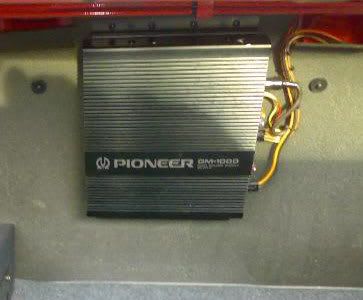

GM-1000 Power Amplifier
GM-41A Stereo Main Amplifier

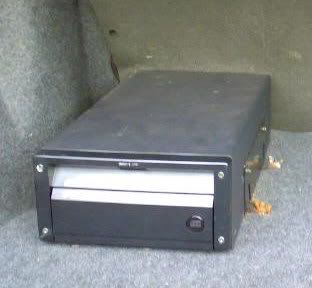

CDX-M100 6-CD Multi Player

I have all the instruction booklets too :D :D

Cost £1000 in Dec 88...........

Edit will get better pics..

B7
E30 Zone Team Member
E30 Zone Team Member
Posts: 15846
Joined: Tue Feb 13, 2007 11:00 pm
Location: Surrey / West Sussex

Mon Jan 24, 2011 7:54 pm

Was that dealer fit Paul? If it was then as I suspected, the available choices changed almost yearly.

89 model year KEXM700
90 April KEXM800
B7's Motto. "If it's French, BURN IT!!!!!!"
The_Diddler
Love it up the more door !
Posts: 3619
Joined: Tue May 27, 2008 11:00 pm
Location: Tamworth, Staffs Lovely!!!!!!

Mon Jan 24, 2011 7:56 pm

B7 wrote:Was that dealer fit Paul? If it was then as I suspected, the available choices changed almost yearly.

89 model year KEXM700
90 April KEXM800
Yes Trevor, Dealer fit, Car registered Jan 01 1989
B7
E30 Zone Team Member
E30 Zone Team Member
Posts: 15846
Joined: Tue Feb 13, 2007 11:00 pm
Location: Surrey / West Sussex

Mon Jan 24, 2011 8:07 pm

Thanks Paul. OP updated with info supplied. Cheers :D
B7's Motto. "If it's French, BURN IT!!!!!!"
Blitz
Married to the E30 Zone
Married to the E30 Zone
Posts: 11155
Joined: Mon Jan 30, 2006 11:00 pm
Location: East London+Basildon

Mon Jan 24, 2011 9:17 pm

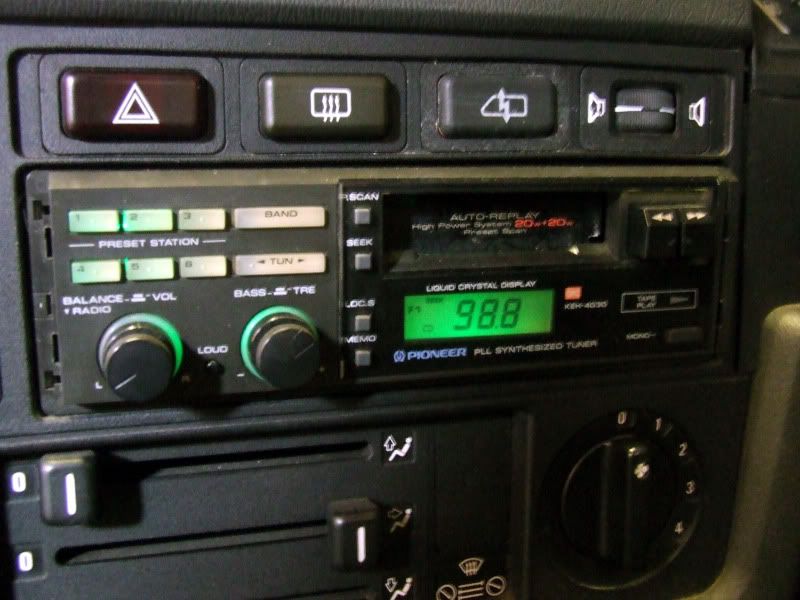

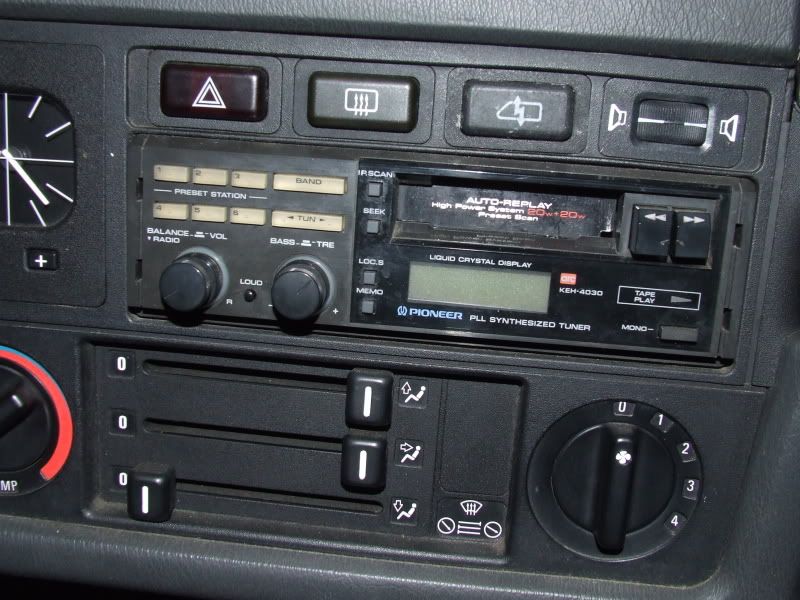

I'm sure its original

Pioneer KEH-4030 from a March 1987 car.

sweep
Married to the E30 Zone
Married to the E30 Zone
Posts: 10112
Joined: Sat Mar 15, 2008 11:00 pm
Location: spares & repairs in sheffield

Mon Jan 24, 2011 9:23 pm

I need a cambridge as my screen has bled :cry:
B7
E30 Zone Team Member
E30 Zone Team Member
Posts: 15846
Joined: Tue Feb 13, 2007 11:00 pm
Location: Surrey / West Sussex

Mon Jan 24, 2011 9:39 pm

Blitz wrote:I'm sure its original

Pioneer KEH-4030 from a March 1987 car.
Mo. Certainly looks to be period. Whether it's a dealer fit option though I need to see the accessory list.

Ironic thing is, In 1984, I bought a Pioneer KE6300 (with a bp520 equaliser)for my Grananda. It always bugged me that I didn't go for the KE7300 as it had green illumination. The 6300 had orange.
And theres you needing orange and the pioneer you have has green.

I've just found a KE6300 on eBay. It would be mint in an '84 323!!!!

http://cgi.ebay.co.uk/Pioneer-KE-6300-C ... 19c29a07c4
B7's Motto. "If it's French, BURN IT!!!!!!"
Simon13
The longest resto in the world !
Posts: 22697
Joined: Mon Jan 10, 2005 11:00 pm
Location: Camberley, Surrey don't u know

Mon Jan 24, 2011 10:20 pm

whys the blaupunkt Croydon not on there?
B7
E30 Zone Team Member
E30 Zone Team Member
Posts: 15846
Joined: Tue Feb 13, 2007 11:00 pm
Location: Surrey / West Sussex

Mon Jan 24, 2011 10:32 pm

Simon13 wrote:whys the blaupunkt Croydon not on there?
:)
B7's Motto. "If it's French, BURN IT!!!!!!"
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Mon Jan 24, 2011 11:18 pm

The Blaupunkt Croydon (Memphis SQR88) will be adorning the sport along with a BQA80 amplifier very soon!

Not 100% sure if i want to use the BEQ S2 stalk EQ yet as im not sure where to mount it so it looks nice.

I'm sure the Blaupunkt New York is to early for '90 Trev, i think its circa '86,'87.

Oh, and the Mephis SQR88 works with any MP3 player/iPOD (tested this week, youtube vid to follow!) as it has an aux in on the front! :D

Didn't realise the Memphis was the top model either.

Awesome thread Trev! :cool:

Retro OEM audio FTW!
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
B7
E30 Zone Team Member
E30 Zone Team Member
Posts: 15846
Joined: Tue Feb 13, 2007 11:00 pm
Location: Surrey / West Sussex

Tue Jan 25, 2011 7:14 am

bss325i wrote:The Blaupunkt Croydon (Memphis SQR88) will be adorning the sport along with a BQA80 amplifier very soon!

Not 100% sure if i want to use the BEQ S2 stalk EQ yet as im not sure where to mount it so it looks nice.

I'm sure the Blaupunkt New York is to early for '90 Trev, i think its circa '86,'87.

Oh, and the Mephis SQR88 works with any MP3 player/iPOD (tested this week, youtube vid to follow!) as it has an aux in on the front! :D

Didn't realise the Memphis was the top model either.

Awesome thread Trev! :cool:

Retro OEM audio FTW!
So the KNACKERSmingy is going then Barry?

The New York went on longer than you think Barry. They even did a CD model although the design did change later. The SCD08

B7's Motto. "If it's French, BURN IT!!!!!!"
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Tue Jan 25, 2011 6:17 pm

B7 wrote:
bss325i wrote:The Blaupunkt Croydon (Memphis SQR88) will be adorning the sport along with a BQA80 amplifier very soon!

Not 100% sure if i want to use the BEQ S2 stalk EQ yet as im not sure where to mount it so it looks nice.

I'm sure the Blaupunkt New York is to early for '90 Trev, i think its circa '86,'87.

Oh, and the Mephis SQR88 works with any MP3 player/iPOD (tested this week, youtube vid to follow!) as it has an aux in on the front! :D

Didn't realise the Memphis was the top model either.

Awesome thread Trev! :cool:

Retro OEM audio FTW!
So the KNACKERSmingy is going then Barry?

The New York went on longer than you think Barry. They even did a CD model although the design did change later. The SCD08

It a coincidence that you started this thread as for the last few weeks i've been researching old Blaupunkt Audio as in what was available, what works with what and what can be made to work with other audio like MP3's and Ipod's etc.

Been checking out Pete's stash of Old skool Blaupunkts, Beckers and other stuff.

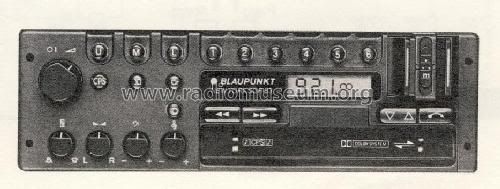

That New york tape deck is an SQR 83 and dates from about 1983 so would be correct for '83, '84, '85 '86. It was also know as the Köln. It also llacks alot of the features that the later SQR88 has.

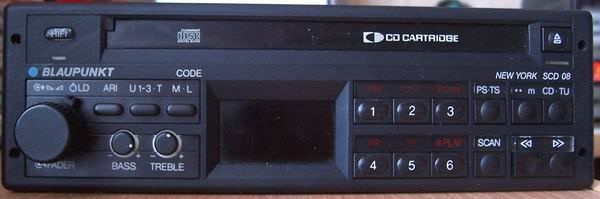

There were other New Yorks, like the SCD08 cartridge CD player (Pacer has 3 of these!) and even throughout the '90's and 00's there was a New york of some sort.

The thing with Blaupunkt is the some models (more so with stuff from the '80's) had different names for different markets.

For example, the SQR88 was badged as the Memphis for the UK, the Woodstock for Germany.
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Tue Jan 25, 2011 6:18 pm

Oh and yes the Nak is going along with the Alpine amps and sub.
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
B7
E30 Zone Team Member
E30 Zone Team Member
Posts: 15846
Joined: Tue Feb 13, 2007 11:00 pm
Location: Surrey / West Sussex

Tue Jan 25, 2011 6:53 pm

I need accessory brochures for all the years of e30 (up to '93 for the verts and tourings) except '90.

I doubt we'll get a definitive list but we can do better than that.

Barry, I reckon you are about right on the New York. Mate Marcus had one in his Mk1 GTI which was an '83 Y. And that car was 18 months old when he bought it. He also has some serious old Alpine kit including the pull out head unit, speakers and amps he had fitted at Road Radio in Epsom into his brand new 1989 325i 2 door. :cool:
B7's Motto. "If it's French, BURN IT!!!!!!"
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Tue Jan 25, 2011 7:01 pm

Trev, my sport had an Alpine 7179LS pull out tape deck and a pair of Alpine co-ax's fitted in it from new (which i still have).
The orginal owner obviously didn't fancy forking out £500-£1200 on a radio from the dealer so went else where. Where i do not know.

From page 13 of my sport thread.

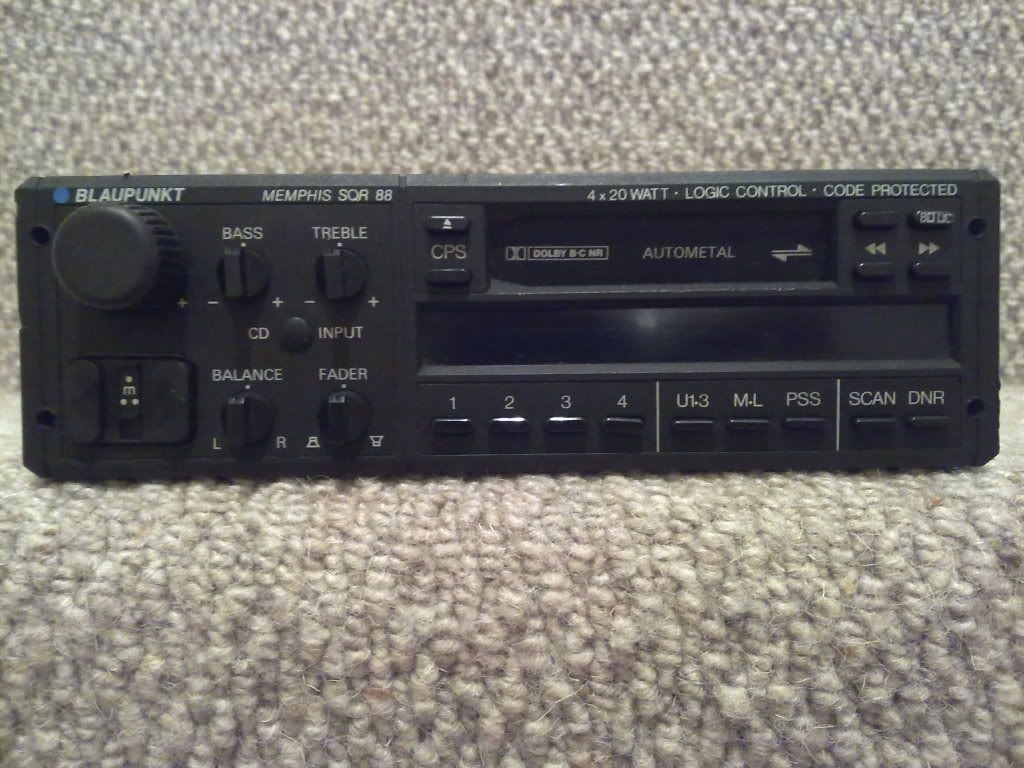

bss325i wrote:This is a Blaupunkt Memphis SQR 88 which was one of the higher end units available at the time. The good thing about this unit is that is has a CD input which happens to be a 3.5mm jack lead socket so i can use an ipod and not have to listen to tapes from '89!


Findind an SQR 88 is hard enough but fining it with these other two items is dam near impossible! Here we have the BEQ-S2 remote equaliser and BQA 80 4 chanel amp.

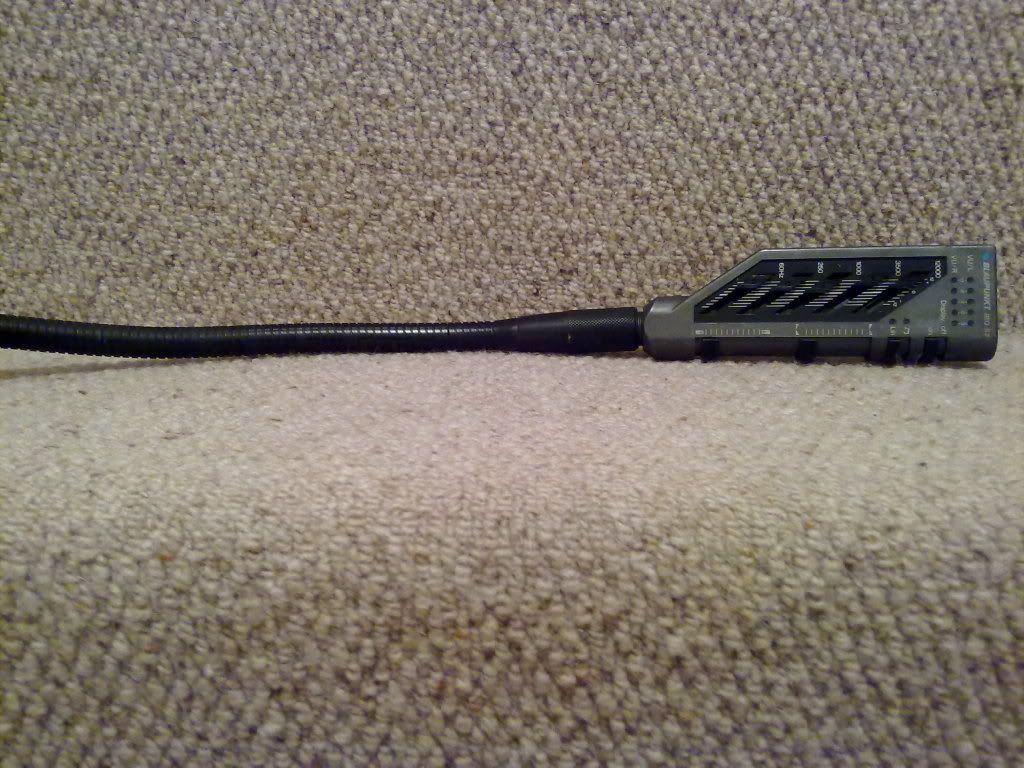

The BEQ-S2 is on a flexible stalk which is mounted somewhere like the centre consol and is very 80's but also very pointless! I guess it save chopping up a centre consol or dash in an E30 though.



http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Tue Jan 25, 2011 7:37 pm

Here's a vid i did today demonstrating the ipod compatibility and the tape function of the SQR88.

[youtube][/youtube]

The two songs you can hear were in the charts in '88 and '89 which are very fitting for this head unit!

[youtube][/youtube]

[youtube][/youtube]
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
User avatar
andyp
True Old Skooler
Posts: 6899
Joined: Sun Jan 09, 2005 11:00 pm
Location: LONDON

Tue Jan 25, 2011 7:44 pm

ive got an original Blaupunkts system i took out of the IS i had its even got the cd changer with it, will have to dig it out and put it up for sale soon :D
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Tue Jan 25, 2011 7:52 pm

Post some pics up!
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
Blitz
Married to the E30 Zone
Married to the E30 Zone
Posts: 11155
Joined: Mon Jan 30, 2006 11:00 pm
Location: East London+Basildon

Tue Jan 25, 2011 8:36 pm

That is cool Barry. Never knew they had Aux input.
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Tue Jan 25, 2011 8:45 pm

The SQR 88 also has an 8 pin DIN input on the rear so you can hook up a Blaupunkt CD player or changer or with the right lead, anything really.

They also have an 8 pin DIN amp output to which you can get a lead to change from 8 pin DIN to RCA phono so you can use any amp, not just the Blaupunkt ones.
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
e30topless
E30 Zone Team Member
E30 Zone Team Member
Posts: 13598
Joined: Wed Aug 23, 2006 11:00 pm
Location: surrounded by scrap

Tue Jan 25, 2011 8:49 pm

the KEHM5000B was fitted to a lot of 5 series as standard, I would love one but quite rare,
E30BeemerLad
Married to the E30 Zone
Married to the E30 Zone
Posts: 16806
Joined: Mon Mar 28, 2005 11:00 pm
Location: Norfolk

Tue Jan 25, 2011 9:13 pm

My mate's old man had a well optioned E23 735i back in the day, which was originally specced for Tom Cowie of Cowies garages fame. So it was well loaded down with morsels. It was on a B plate I recall.

It had the EQ stalk mounted on the right hand side of the transmission tunnel and the tuner on a separate stalk mounted on the passenger side of the transmission tunnel so they sat about level with the heater controls/ near the top vents. There was a cassette only unit mounted in the usual stereo location in the dash. I recall the cassette deck you pushed the tape in face first (with the exposed bit of the tape away from you) rather than the traditional side on way.

That Pioneer KEH9000 RDS gives me the horn
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Tue Jan 25, 2011 10:54 pm

Some extracts from a BMW Car club magazine circa '89/'90.




http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
pacerpete
E30 Zone Team Member
E30 Zone Team Member
Posts: 18168
Joined: Sun Jan 23, 2005 11:00 pm
Location: Iver heath. South bucks.

Tue Jan 25, 2011 11:34 pm

After all these years , it is good to know I am normal ! :D
The_Diddler
Love it up the more door !
Posts: 3619
Joined: Tue May 27, 2008 11:00 pm
Location: Tamworth, Staffs Lovely!!!!!!

Tue Jan 25, 2011 11:41 pm

bss325i wrote:
Thats my Stereo right there!!! 8O 8O , dont suppose you have a scan copy i could have Barry ?? :D :D
DanThe
E30 Zone Team Member
E30 Zone Team Member
Posts: 28641
Joined: Sat Sep 10, 2005 11:00 pm
Location: Staffs
Contact:

Tue Jan 25, 2011 11:42 pm

/\ Can i get Planet Rock on that? /\
pacerpete wrote:After all these years , it is good to know I am normal ! :D
No, your all deviants! :o
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Wed Jan 26, 2011 12:07 am

Paul, that is a scanned copy. Pm me your email addy and i'll send it over.
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
Post Reply
