Rotrex M42 Build - 285bhp little update
Moderator: martauto
As some of you may know i bought some M42 supertech valves, retainers and springs off E-bay from a guy in ireland from an unfinished project.
These are solid and made of better suited material than the bmw ones for my boosted application.
However, when i got them and measured them the stems were only 6mm not the usual 7mm on and e30 m42, e30 is the important bit here, emailed supertech ot ask how i was supposed to fit then and made out i'd just got them from one of there dealers.
Turns out then never new the m42 was in a E30 and these valves were made for the e36 m42 which had 6mm valves from mid 92 onwards up till the m44 came along. however they did offer to make me a set of new guides so they would fit my e30 7mm head for £8 each plus Vat + shipping
Pure luck would have it i bought a e36 m42 head off kedge last year with a job lot of m42 bits he was selling and the guides look to me good in this so ive have sent this off to be re cut to suit the new valves.
the other problem is that the stem seals are also 6mm and these are also harder to get hold of although ive now been able to get hold of some, and the guides are NLA just so you know.

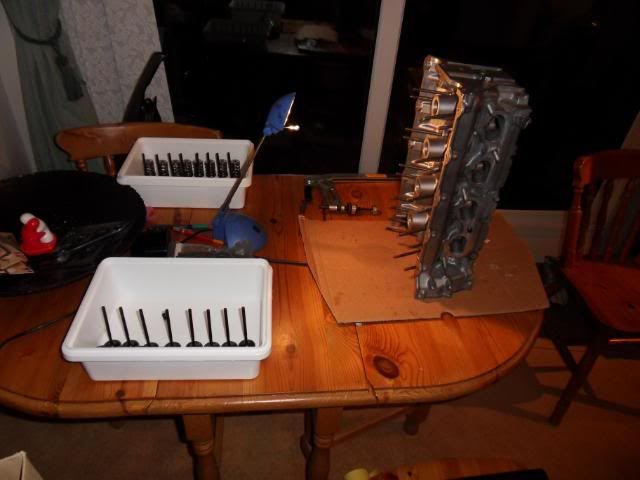

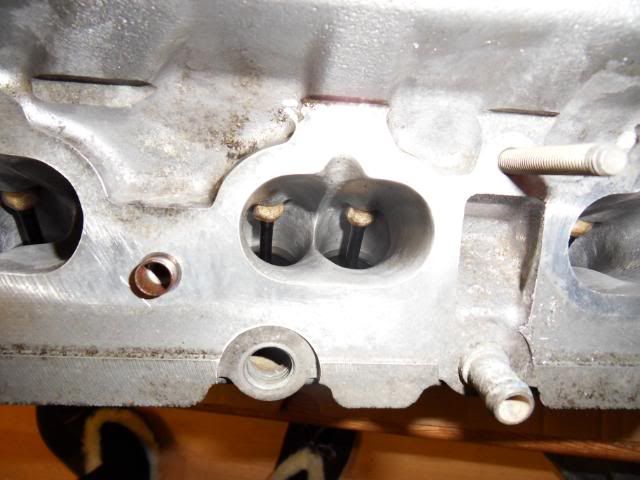

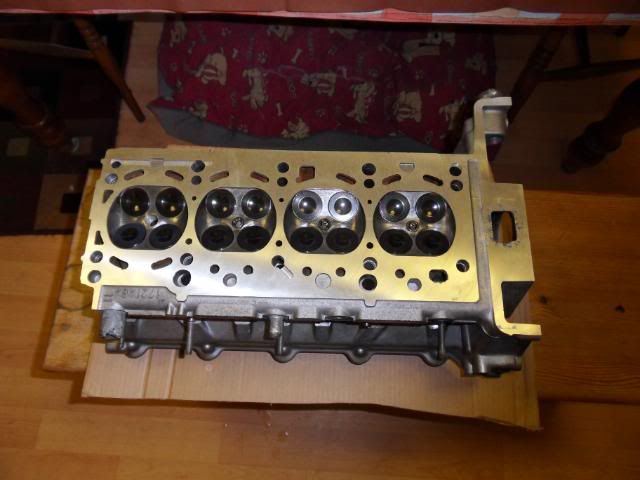

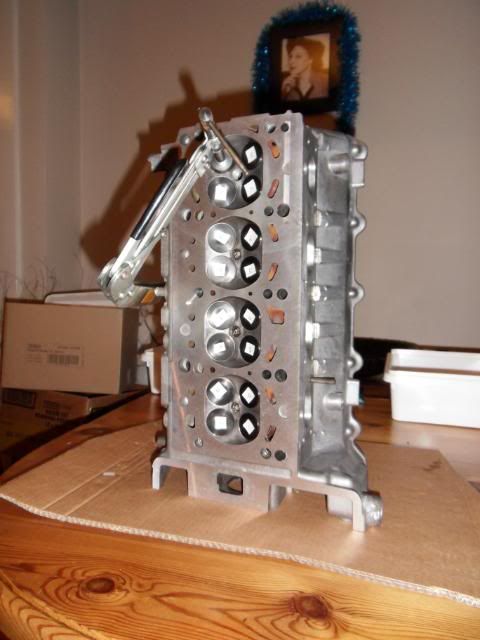

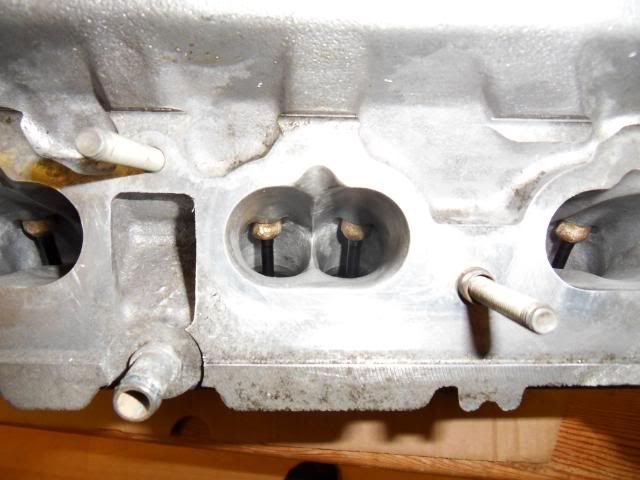

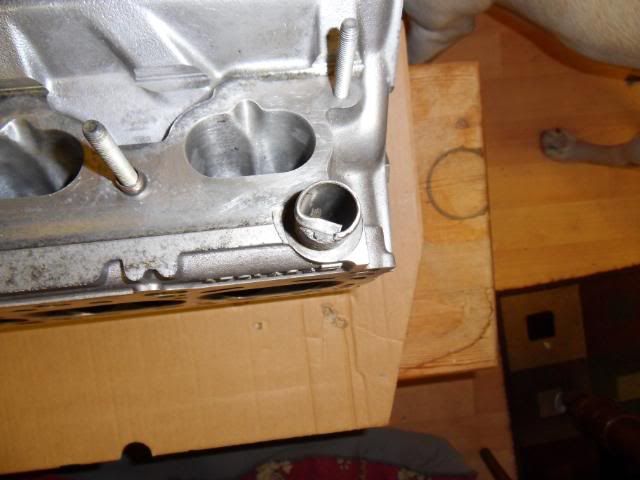

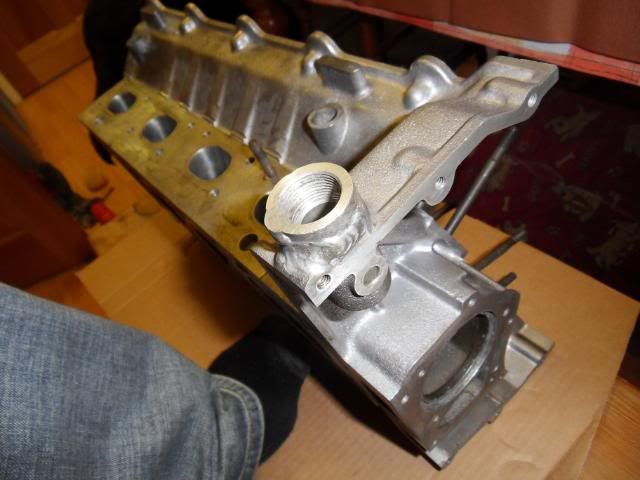

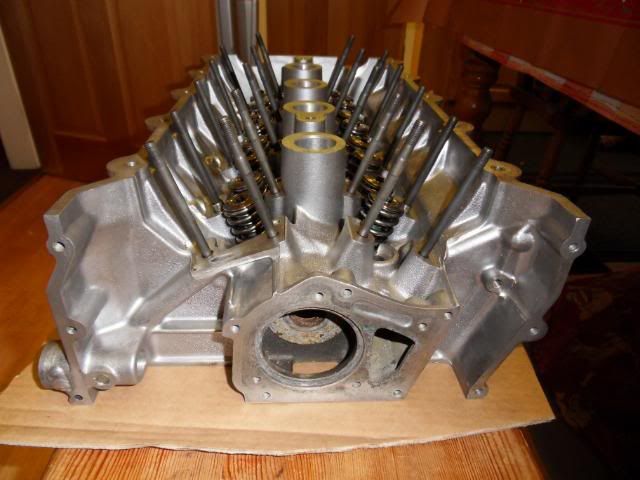

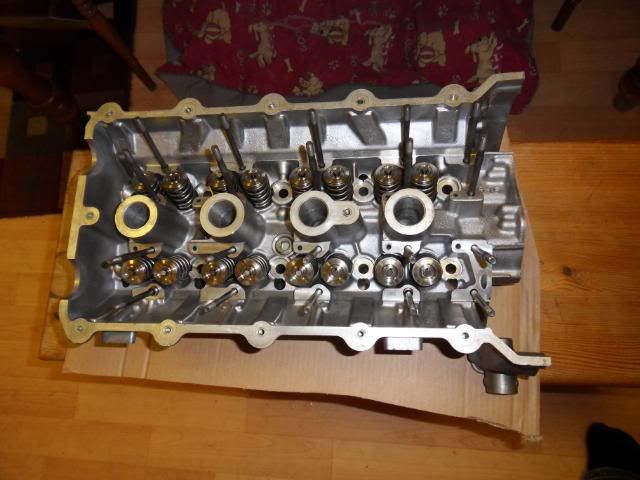

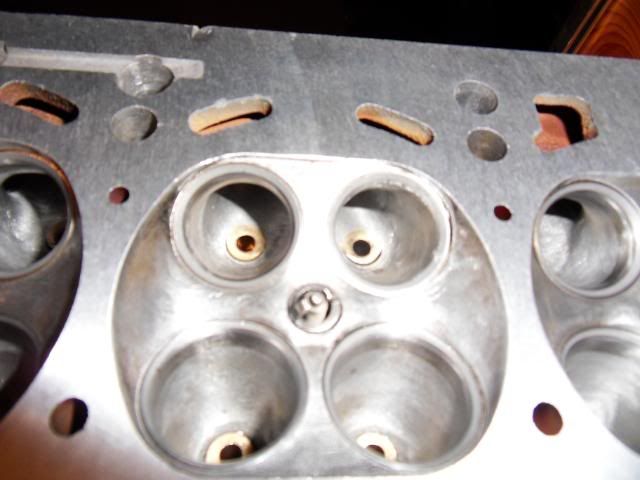

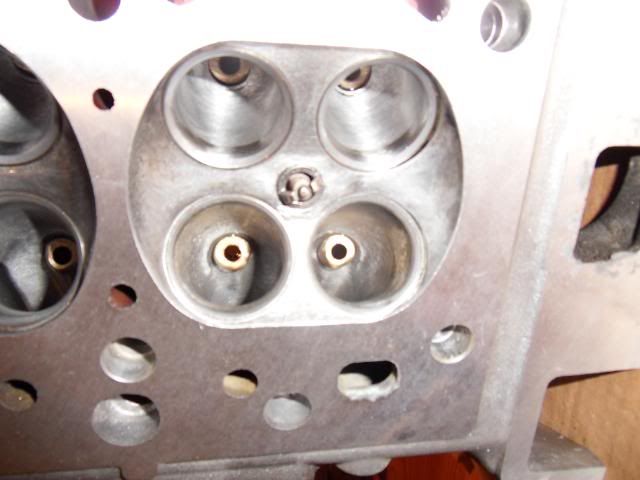

Before the head went off i stripped it and steam cleaned it, heres the pics.
And whats all this got to do with todays up date?
When i sorted the stem seals it was only a tenner more for a Victor rymes ( eom) head gasket set than bmw wanted for just 16 stem seals and i thought that the other gaskets would probly come in handy at some point, like today, so i orderd one.
I orederd the gasket set thursday and was told it would be here today for me to pickup from parkside bmw.
So woke up early on my day off and started to do the timeing case gasket which has leaked ever since i got the car but has started to get worse of late, thought i'd be able to get to the gasket without taking the thermostat housing off but snapped one of the heads off the case bolts in the removal process and it turns out i wouldn't have been able to change the gasket anyway with the housing on.
so a simple job turns in to a major one, draind the coolent and removed the housing, removed the timing case cover which wasnt realy down to the gasket and was sitting proud of the rest of the head at the top( the holes are slotted so it does move during installation) this means the cam cover/gasket was sitting on a small step, removed the snapped bolt stud with mole grips.
It is actuly quite clean in there although the phones flash has made it look abit more orangey than it is.
next stuffed half a roll of kitchen paper down the timing case hole to stop sh1t going down when i cleaned the gasket surfaces (yes i made sure i got it all out again
) also borrowed the hoover to catch the crap thas had got in the little gaps.
You can see from the cleaned timing case were the oil had soaked in to the crap on the cover and stopped it from corroding
theres a diagnol line from between the top and 2nd hole on the left hand side to the bottom hole on the right hand side
So with everything cleaned ready to be re assembled rang parkside, no gasket set, ECP/GSF have no 6mm stem seal gasket sets in stock at any store. so its been reordered from some were else for tomorrow.
Moral of the story, never ever do a "small job" when you know you need your car the next day, or when its going 100miles to get remapped on friday, i should no better
Also got this made at the weekend for my run down to emerald as the cars abit hard to drive as you cant use light throttle openings to much or the AFR leans out, its ok on WOT though
These are solid and made of better suited material than the bmw ones for my boosted application.
However, when i got them and measured them the stems were only 6mm not the usual 7mm on and e30 m42, e30 is the important bit here, emailed supertech ot ask how i was supposed to fit then and made out i'd just got them from one of there dealers.
Turns out then never new the m42 was in a E30 and these valves were made for the e36 m42 which had 6mm valves from mid 92 onwards up till the m44 came along. however they did offer to make me a set of new guides so they would fit my e30 7mm head for £8 each plus Vat + shipping
Pure luck would have it i bought a e36 m42 head off kedge last year with a job lot of m42 bits he was selling and the guides look to me good in this so ive have sent this off to be re cut to suit the new valves.
the other problem is that the stem seals are also 6mm and these are also harder to get hold of although ive now been able to get hold of some, and the guides are NLA just so you know.
Before the head went off i stripped it and steam cleaned it, heres the pics.
And whats all this got to do with todays up date?
When i sorted the stem seals it was only a tenner more for a Victor rymes ( eom) head gasket set than bmw wanted for just 16 stem seals and i thought that the other gaskets would probly come in handy at some point, like today, so i orderd one.
I orederd the gasket set thursday and was told it would be here today for me to pickup from parkside bmw.
So woke up early on my day off and started to do the timeing case gasket which has leaked ever since i got the car but has started to get worse of late, thought i'd be able to get to the gasket without taking the thermostat housing off but snapped one of the heads off the case bolts in the removal process and it turns out i wouldn't have been able to change the gasket anyway with the housing on.
so a simple job turns in to a major one, draind the coolent and removed the housing, removed the timing case cover which wasnt realy down to the gasket and was sitting proud of the rest of the head at the top( the holes are slotted so it does move during installation) this means the cam cover/gasket was sitting on a small step, removed the snapped bolt stud with mole grips.
It is actuly quite clean in there although the phones flash has made it look abit more orangey than it is.
next stuffed half a roll of kitchen paper down the timing case hole to stop sh1t going down when i cleaned the gasket surfaces (yes i made sure i got it all out again
) also borrowed the hoover to catch the crap thas had got in the little gaps.You can see from the cleaned timing case were the oil had soaked in to the crap on the cover and stopped it from corroding
theres a diagnol line from between the top and 2nd hole on the left hand side to the bottom hole on the right hand side
So with everything cleaned ready to be re assembled rang parkside, no gasket set, ECP/GSF have no 6mm stem seal gasket sets in stock at any store. so its been reordered from some were else for tomorrow.
Moral of the story, never ever do a "small job" when you know you need your car the next day, or when its going 100miles to get remapped on friday, i should no better
Also got this made at the weekend for my run down to emerald as the cars abit hard to drive as you cant use light throttle openings to much or the AFR leans out, its ok on WOT though
You should never underestimate the predictability of stupidity
M42 Supercharged 285bhp + M3 6speed box
Well, went down to see Dave Walker yesterday and got the car remapped with the new charger on.
Set off from mine at 12 and got to his for 3ish, i can say that a 3hour 100mile drive in a a car that you cant realy use part throttle on stuck behind lorries on the A17 isn't much fun!
I had to keep dropping back, using half throttle then knock it out of gear and coast for a bit to keep the AFRs from going lean.
The journey back was alot smoother apart from a large foam fire extinguisher i had on the back seat went off whilest exiting a roundabout, the hose was pointing forward and sent foam on to the back of the seats, dash, windscreen and me, then filled up the back seat foot well so i had to stop and clear some of it out, you can just see what i scraped off my arm on to the floor in this pic, luckily it seamed to disolve ok with out damaging anything. Sh1t me up abit
Anyway, heres the results so far, Asked dave to map it up till it made 8psi boost as i didnt what to go much more than what it was running before still on the standard internals.
BHP - Red
Tourque - Blue
AFR - Green
Boost - Purple
And heres the new plot against the first set up.
Supercharger setup #1 - 205bhp@6521rpm 178ftlb@4310rpm
Supercharger setup #2 - 187bhp@5301rpm 185ftlb@5301rpm
As you can see from the graph the new setup is going to be a much more topend power build and feels as if just starting to get in to its stride past 4.5krpm which is what i missed so much with the Eaton blower making the car much more low down torquey car.
Just looking at the curves and putting a rule next to them if it carries on rising like it appears to be at 6500rpm i think i should be seeing something like 13-14psi boost and 260ish BHP, which int bad but i was hopeing for a little more, so might have to fit a smaller pully at some point although i cant find much info on how the rotrex boost changes as they become more effiecent higher in the RPM.
I also had the pleasure of seeing/hearing the RX7 with the LS? engine in it Dave writes about in his "Walkers World" section in PPC 7ltr 700bhp V8
What a car that thing is, dave took it for a spin and said you can almost feel the chassis twisting under the power
Set off from mine at 12 and got to his for 3ish, i can say that a 3hour 100mile drive in a a car that you cant realy use part throttle on stuck behind lorries on the A17 isn't much fun!
I had to keep dropping back, using half throttle then knock it out of gear and coast for a bit to keep the AFRs from going lean.
The journey back was alot smoother apart from a large foam fire extinguisher i had on the back seat went off whilest exiting a roundabout, the hose was pointing forward and sent foam on to the back of the seats, dash, windscreen and me, then filled up the back seat foot well so i had to stop and clear some of it out, you can just see what i scraped off my arm on to the floor in this pic, luckily it seamed to disolve ok with out damaging anything.
Sh1t me up abit Anyway, heres the results so far, Asked dave to map it up till it made 8psi boost as i didnt what to go much more than what it was running before still on the standard internals.
BHP - Red
Tourque - Blue
AFR - Green
Boost - Purple
And heres the new plot against the first set up.
Supercharger setup #1 - 205bhp@6521rpm 178ftlb@4310rpm
Supercharger setup #2 - 187bhp@5301rpm 185ftlb@5301rpm
As you can see from the graph the new setup is going to be a much more topend power build and feels as if just starting to get in to its stride past 4.5krpm which is what i missed so much with the Eaton blower making the car much more low down torquey car.
Just looking at the curves and putting a rule next to them if it carries on rising like it appears to be at 6500rpm i think i should be seeing something like 13-14psi boost and 260ish BHP, which int bad but i was hopeing for a little more, so might have to fit a smaller pully at some point although i cant find much info on how the rotrex boost changes as they become more effiecent higher in the RPM.
I also had the pleasure of seeing/hearing the RX7 with the LS? engine in it Dave writes about in his "Walkers World" section in PPC 7ltr 700bhp V8
What a car that thing is, dave took it for a spin and said you can almost feel the chassis twisting under the power
You should never underestimate the predictability of stupidity
M42 Supercharged 285bhp + M3 6speed box
I ran mine flat out 13,800 rpm out of 14,000 rpm at 6,500 engine rpm and it made 8psi in the graph above with 70c inlet air before the charge cooler/intercooler (what ever you use).
You should never underestimate the predictability of stupidity
M42 Supercharged 285bhp + M3 6speed box
Work. What do you need? Stainless bends are about £4-5-6 each 2-2.5-3'' 90 or 45d we also do reducers an fitings. I used it because it was the but you can get ally bends of ebay quite cheap and there lighter.
If you want stainless though get me a list of what you want and ill get a price.
If you want stainless though get me a list of what you want and ill get a price.
You should never underestimate the predictability of stupidity
M42 Supercharged 285bhp + M3 6speed box
-
rix313
- E30 Zone Team Member
- Posts: 4957
- Joined: Fri Oct 31, 2008 11:00 pm
- Location: Silverstone
- Contact:
Cheers bud, all I need is a 90 degree to come out of my S/C bracket because obv can't join the Ali tube and the steel bracket, unless I make the bracket out of Ali ??
What is your crank pully set up mate? Guessing the alternator uses the current V, S/C on the pully wheel you've got there. How does the PAS run?
What is your crank pully set up mate? Guessing the alternator uses the current V, S/C on the pully wheel you've got there. How does the PAS run?
Well ive not up dated this thread in a while so heres a small one.
After GeoffBobs super effort with helping me out with the project ive fitted the smaller supercharger he suggested and its working realy well.
Read all about it here.
http://www.e30zone.net/modules.php?name ... 25&start=0
The new charger arrived
I offered it up but with the current belt it there was not enough adjustment in my tensioner to take up the slack due to the smaller pully
So two options here, either space the bracket off the block, adding more stress to the block mounting holes or go back to halfords and try and get a smaller belt.
After playing around with spacers it worked out that i would have to double the spacers to account for the slack, i wasnt happy with this so went to halfords to try and get a smaller belt, they had non in stock but after finding a belt that fitted perfectly but 4v they ssaid they could get a 6v version in for that afternoon so job done!

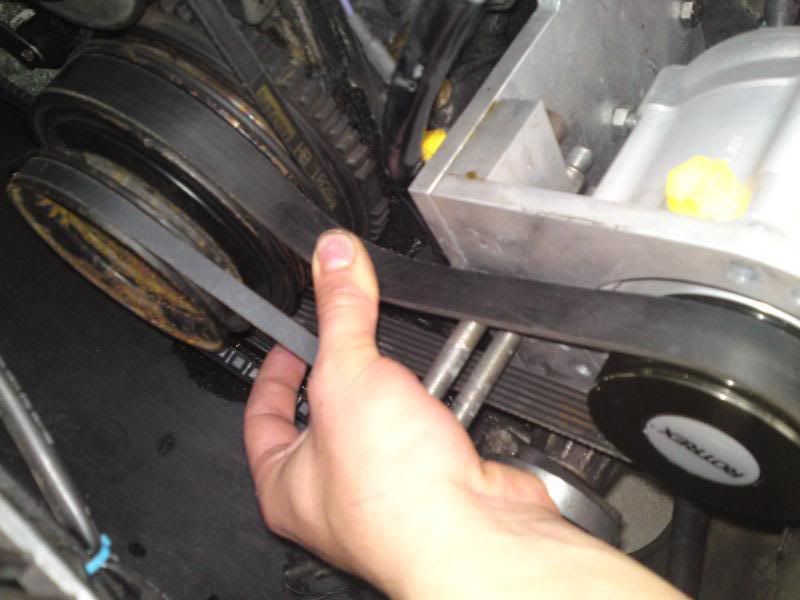

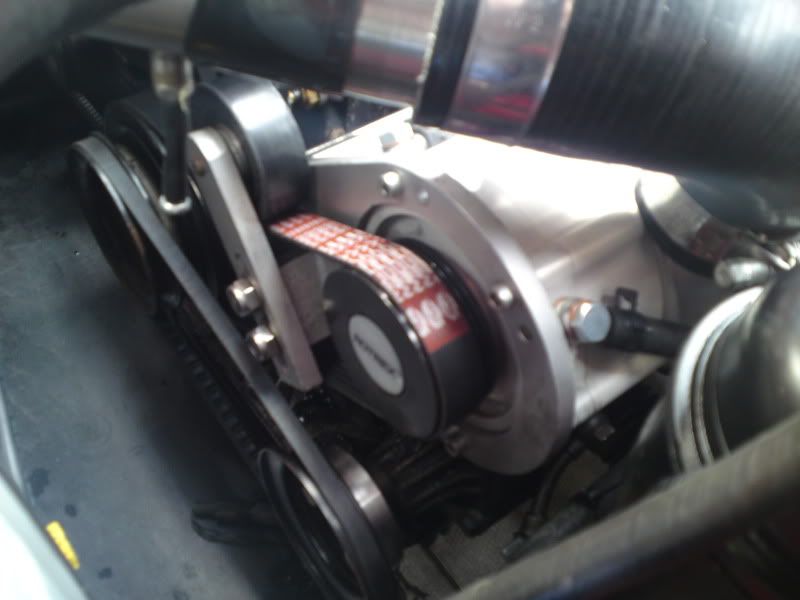

Fitted the new belt and its even an even better fit than the first one i had, its neary tight enough with out a tensioner! this means if i wanted to i could swop to a much smaller neater tensioner in the future if i wanted to swop back to my 4v power steering belt which i cant currently run due to the tensioner being in the way
Small things, the new belts fitted and has a large white and red patch on it which looks mint spinning round the pullys just like a proper super charger should do. LOL
New belt fitted
On the side while i was waiting for the new charger to arrive i fitted my 1.9Z3 quick rack which was a night mare as all the pipes wasnted to run were i put my alternator so i had to borrow works pipe benders and "alter"the origonal 318is one to fit the Z3 rack.
Pic

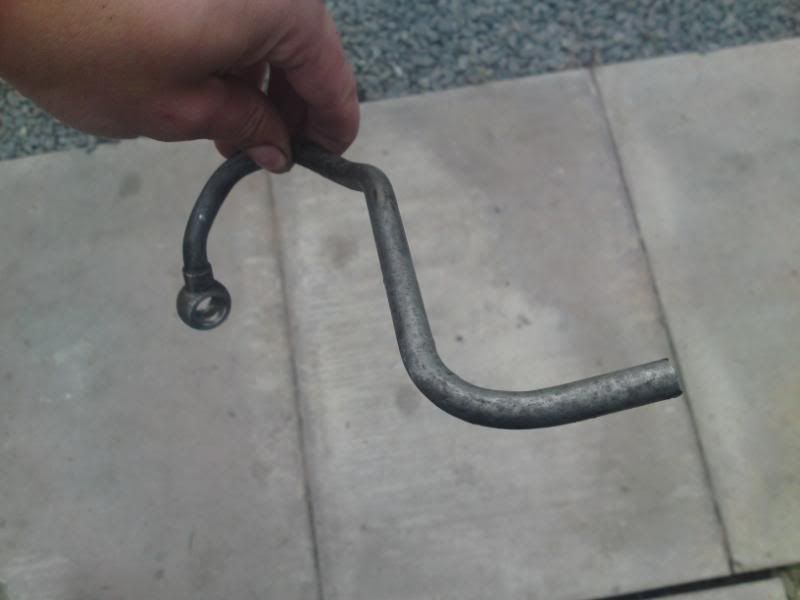

New pipe bent
Fitted in a tight space.

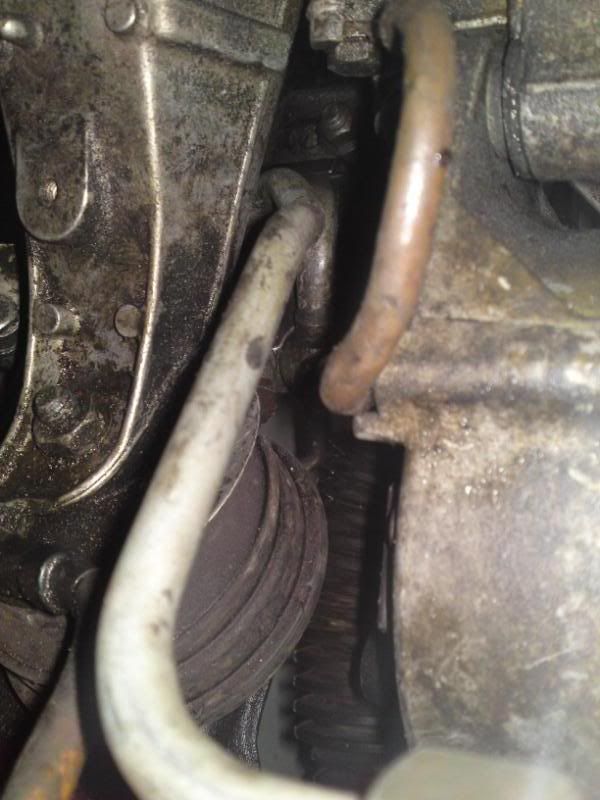

Ignore the oil everwere it was from slack power steering coupling the first time started it, ooops
