Need a hand here guys, does anyone have the templates for both the intake and exhaust ports+bolts on the M5x head?

Im just playing around with solidworks, and i wanted to sketch up some manifolds.

Cheers.
Top
eko
Old timer
Posts: 11531
Joined: Sat Feb 05, 2005 11:00 pm
Location: South Devon

Sun Mar 14, 2010 1:00 am

This any use?

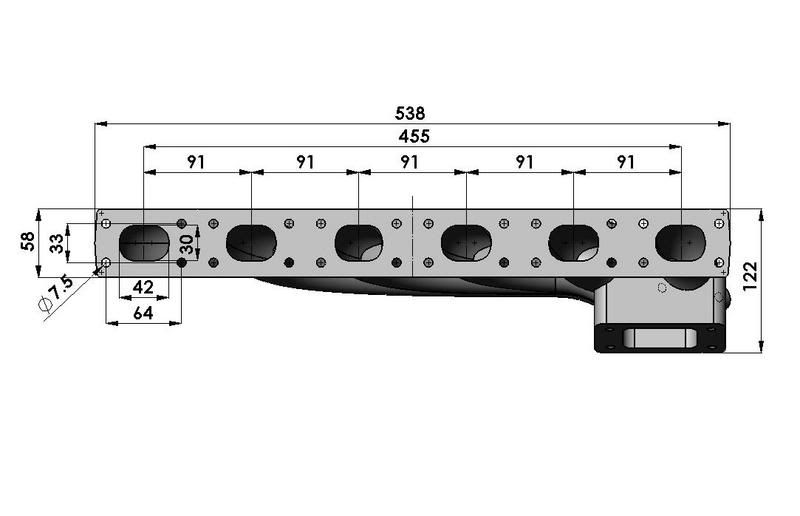

M5x exhaust
Top
User avatar
Coyote_ar
E30 Zone Newbie
E30 Zone Newbie
Posts: 108
Joined: Mon Jan 07, 2008 11:00 pm
Location: Argentina

Sun Mar 14, 2010 2:39 am

Yes sir, appreciate it :D

now i just need the intake ones 8)
