E30 Dyno Graphs Required for New Wiki Page

[Speedtouch]

Uploaded with ImageShack.us

2.4litre s14 turbo, 2.3 215bhp top end, custom pistons, t38 turbo, huge intercooler and not much boost!

spikes in graph low down was a gearchange.

Streuth! Impressive power output for an M3 engine without much boost.

[magpie]

wanna smell my cheese ?

[Rav335uk]

wanna smell my cheese ?

Best asking Pete

[Kedge]

Started work on the page - http://www.e30zone.net/e30zonewiki/inde ... yno_Graphs

[reggid]

M20B31 - 3086cc, 10.5:1CR, BTB2, BBTB, standalone, catcams 298/285

[gaszman]

this is mine
bmw e30 tech 1 sport
shes never been fooked about with but they only did this in thrd gear so i dont know what they mean ect



dont even know why i got two for

[craigieeb]

here's craigeeb's m50 turbo

Now thats


Mine is a handfull, Craig's must be off it! Very good work!

Cheers Dezzy, and yeah, it's no slouch thats for sure

for the wiki (if its needed)

It's a standard 2.5 M50
ARP studs
MLS Gasket
440cc injectors
Borg Warner Turbo
External Tial wastegate
VEMS ecu
running 1.3 bar of boost (controlled By GReddy PRofec B-spec II boost controller)

[Kedge]

@ gaszman - the top one is the AFR reading. Second shows your power and torque

@ craigieeb - thanks for the update, saved me hunting down a build thread

[Kedge]

Dug out a plenty of dyno graphs from back in the early days of the forum and added those and alos updated the page putting everything into tables.

Was good catching up on some of the olds threads, back then everyone seemed to be constantly trying new things with their cars and many more meets, doesn't seem to happen anymore.

[leeparkes]

There's an old one here.

http://www.e30zone.net/modules.php?name ... sc&start=0

[Kedge]

Awesome, thanks Lee. Don't know how I'd not stumbled across that one

[DHFiS]

M42 with Evolve chip



M42 after remap at Circuit Motors

[magpie]

here's a few more Kedge

http://www.e30zone.net/modules.php?name ... light=dyno


i just checked your work in the wiki ,good job ........


i'm famous ............fame at last

[billgatese30]

Spec for my S50 one (in the Wiki already I see ) is full BTB exhaust and 6 Branch, standard everything else.

Below:
M20B25
Standard everything

Flywheel


Wheels

[Jozi]

My old M42 with a Viper chip, bbtb and k&n panel filter (heater plate removed if it matters)

[Kedge]

I've already plagiarized that thread Mick

Thanks for the update on the S50 Chris, I'll get that added along with your M20 run and the other guys the Evolve chip seems pretty popular for the 318iS!!

[DHFiS]

the Evolve chip seems pretty popular for the 318iS!!

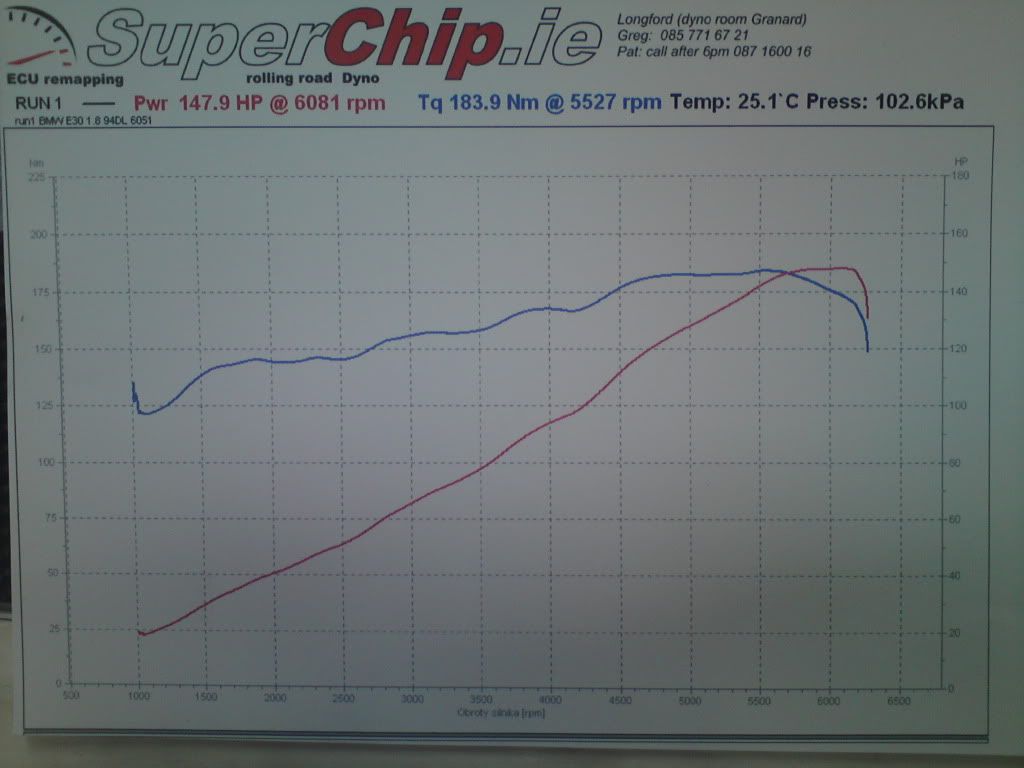

I dont know why but it made no difference to my engine although the remap got it up to 147bhp.

[Kedge]

Anyone with any dyno graphs for M20B20s, M40s, M50s and M52s as we're a little short on them. More M20B28s would be ace as well just for my own interest.

[Kedge]

Another M20B28 and a M40B18 Turbo added.

[billgatese30]

We need more S50's. The world needs more S50's
