HARTGE

[HartgeRaul]

I was wondering when you would show up Raul [/quote]

Hello Rav. I show up when I get a chance for free time.

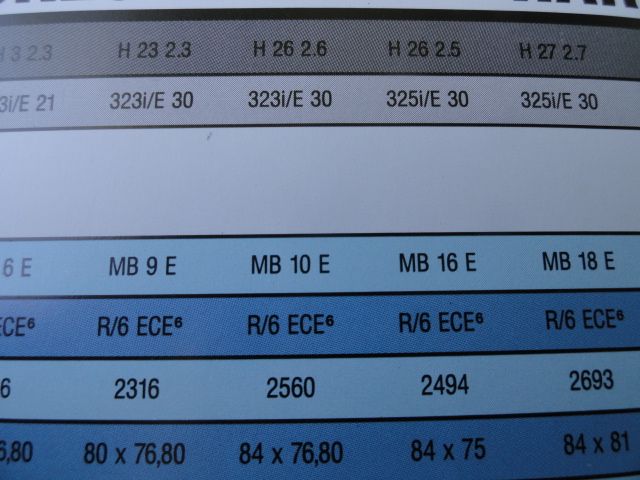

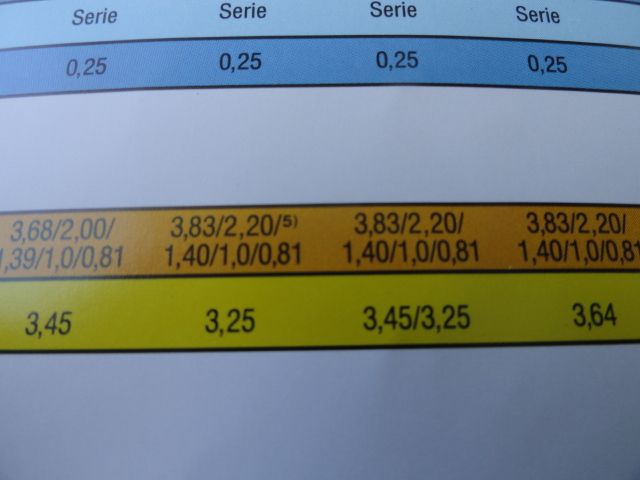

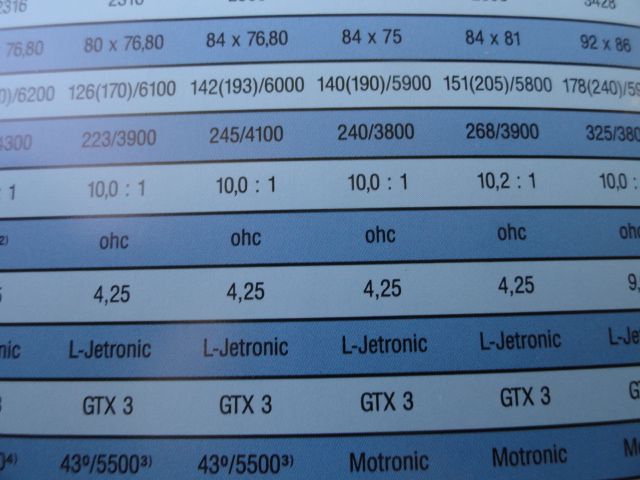

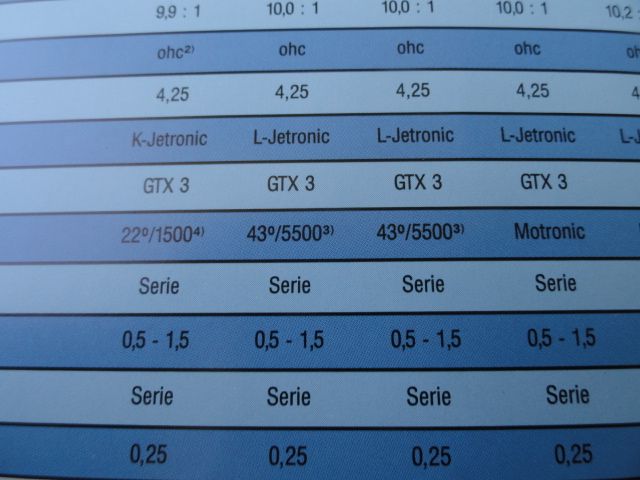

Here some more info on the back of Hartge catalog.

Hartge engine specs.

H26 2.6

325i/e30

Hartge engine type MB 16 E

Engine construction R/6 ECE

Displacement cc 2494

Bore x stroke mm 84 X 75

Performance kW(hp)min 140(190)5900

Maximum torque Nm/min 240/3800

Compression ratio 10,0 : 1

Gear timing och

Oil contents in liters 4,25

Injection system L-jetronic

Engine oil GTX 3

Ignition timing Motronic

Spark plug Serie

CO at 1000 min 0,5 - 1,5

Idling speed min Serie

Valve clearance cold
inlet/exhaust mm 0,25

Transmission ratio 3,83/2,20/1,40/1,0/0,81

Final drive ratio 3,64

Brakes 2
1=sport brakes/
2=sport brake pads

Wheels/Tyres
wheel/tyre front 7.5x16" 195/50/ VR 16
wheel/tyre 7.5x16" 195/50/ VR 16

Acceleration
0-100 km/h sec 7,3
0-1000 m sec 27,9
Maximum speed km/h 222

Consumption
in liters per 100 km

Steady speed 90 km/h 6,7
Steady speed 120 km/h 9,1
City traffic 13,6

[bss325i]

There are two types of H26.

One based on the 323i which has Bosch L jet tronic and a 2.6 engine, the other based on the 325i with Bosch motronic and a 2.5 engine.

The are both similar in CC and spec to Alpina's 323i based C2 2.5 and 325i based C2.5 models.

[HartgeRaul]

There are two types of H26.

One based on the 323i which has Bosch L jet tronic and a 2.6 engine, the other based on the 325i with Bosch motronic and a 2.5 engine.

The are both similar in CC and spec to Alpina's 323i based C2 2.5 and 325i based C2.5 models.

Yes they did build a 323i H26 and 325i H26. I have a 84 Hartge H26. Built by Hartge Germany.

Torombolo was asking for info on 88 Hartge H26 specs. That what I gave him. Hartge also built a e30 323i H35 m30 and a 325i H35 m30. Both earl and late had different horse power.

[bss325i]

Those specs you have state Bosch L jetronic for both H26's but no 325i ever had L jetronic.

[HartgeRaul]

That is what listed in the 1989 Hartge catalog. I bought two of the Hartge catalogs from Germany.

[bss325i]

I also have the 1988 hartge catalogue.

It's wrong as the 325i based H26 retained the 325i's Bosch motronic system.

[HartgeRaul]

I learned some thing today.

[bss325i]

Every day is a school day!

[Torombolo]

Thanks a lot for ht information!

If somebody knows about an itb's Hartge o similar kit for sale for my H26 sp, please let me know!
