Muzza's 3.0 m52

Show off your pride and joy here

Moderator: martauto

User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Sat Feb 14, 2015 6:24 pm

I thought i'd start a thread as the car is going to go through some imminent changes.

I picked the car up on the 3rd Jan after an inspection by a zoner to confirm that the cars bodywork wasn't hiding any nasties.

The car was originally a BMW demo car at Coopers Colchester, it was then purchased by chap that owned it for 22 years and only had it serviced by the main dealer, after that a guy bought it and carried out an M52 conversion, problem is for some unknown reason he installed a M52B25. The next owner was an ex BMW mechanic who then spent a lot of money turning it into a fast road car, he had the car for 3 months and did one track day in the rain, unforeseen circumstances led it being sold to me.

The car has 109,000 miles on the clock and is in really good condition.

The spec is as follows:

Engine/transmission-
M52 2.5 24v engine removed from a 323i E36
M50 inlet manifold
Custom exhaust manifolds with cats removed
Custom stainless exhaust system in 2 1/4 inch with twin tailpipes
Ecu remapped to suit m50 inlet with 7000rpm rev limit
Electric cooling fan on flick switch
320i propshaft
320i soild flywheel and new 320i clutch
Suspension-
H&R cup suspension kit (springs & shocks)
Powerflex bumpstops
Whiteline front and rear antiroll bars with powerflex D bushes
Powerflex eccentric front arm rear bushes increasing caster angle
Alignment set to E30 M3 spec
E30 325i rear axle mounted with powerflex bushes
325i rear trailing arms polybushed
E36 328i steering rack
Brakes-
325i front brake upgrade with heatshields removed
New front calipers, wheel bearings
EBC USR front discs with yellow stuff pads
Rear disc conversion with new discs, pads, handbrake cables, shoes, backplates, wheel bearings
Black diamond 6 line braided brake hose kit
AP racing dot 5 brake fluid
Wheels/tyres-
Compomotive mo th wheels in 15" powdercoated in Alpine white
Toyo Proxe R888 semi slicks in medium compound
front wheels fitted with 5mm spacers
Interior-
Rear seats removed and back of car trimmed in black acoustic carpet
Sparco pro 2000 grp tech bucket seats with fibreglass backs
Sparco vehicle frames and side mounts
Sparco 4 point harnesses
OMP suade 330m sttering wheel
Alpine ipod stereo

Short term plans:
- I am currently having a M52b28 turned into a 3.0 litre by a zoner and a new loom being put in
- Purchased a 3.64:1 zf clutch plate LSD so this will be installed
- Buy some Compomotive centre caps
- Get the b'stard to stop, the brakes are awful, will try a Clio servo and 4 pots.
- Get any dodgy workmanship sorted.
- Drive it, do some track days, have some fun.
- Any suggestions for short term wins?

Medium term plans:
- Roll cage
- 5 stud conversion
- BBS Split rims

Long term plan:
- Buy an E30 M3

Pictures:




Last edited by Muzz2676 on Sat Mar 14, 2015 5:29 pm, edited 1 time in total.
User avatar
madmax1410
E30 Zone Newbie
E30 Zone Newbie
Posts: 88
Joined: Mon Nov 01, 2010 11:00 pm

Sat Feb 14, 2015 11:03 pm

lovely car that with some great spec i seen her on ebay at the time! the wheels really suit it also! regarding the front brakes i know of a few people who fitted mazda rx7 front brake calipers which are a good upgrade to the standard brakes so i believe.

http://www.e30owners.com/forums/showthread.php?t=22903
magpie
Old Skooler
Old Skooler
Posts: 28035
Joined: Sun Jun 29, 2008 11:00 pm
Location: Consett,Durham.

Sat Feb 14, 2015 11:20 pm

i remember seeing this for sale and thought i had mentally undervalued my car [ it's not for sale] , no disrespect to your car it looks to be a good build 8)


maybe you could colour code the bumpers/mirrors ?
m52 b30 stroker 6-speed 318is Galvanizer
m42 touring
+ a yard full of scrap turds :)
polsta
Married to the E30 Zone
Married to the E30 Zone
Posts: 10322
Joined: Fri Oct 09, 2009 11:00 pm
Location: portsmouth

Sat Feb 14, 2015 11:45 pm

To be fair them wheels on the car look the absoloute tits , like above color code the bumpers/mirrors and an is lip would really finish it off looks wise
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Sun Feb 15, 2015 7:35 am

magpie wrote:i remember seeing this for sale and thought i had mentally undervalued my car [ it's not for sale] , no disrespect to your car it looks to be a good build 8)


maybe you could colour code the bumpers/mirrors ?
I had the same thoughts on the mirrors and bumpers, that would just mean keeping an eye out on eBay here i take it.

As for the price I think we should gloss over that, I agree I was a bit daft in that area but the most important thing to me was the shell being solid, anyway the initial outlay is forgotten now and as we all know modding cars is where the really foolish money goes.

Thanks for the tip on the brakes madmax!
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Sun Feb 15, 2015 9:57 am

No need to look on eBay, just remove the bunpers and mirrors, strip them down and have them painted.
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Sun Feb 15, 2015 10:14 am

bss325i wrote:No need to look on eBay, just remove the bunpers and mirrors, strip them down and have them painted.

Okay, sounds like a plan, I'll take the car up the local body shop and get a price. Thanks!
User avatar
BenHar
E30 Zone Addict
E30 Zone Addict
Posts: 3068
Joined: Sun Jul 11, 2010 11:00 pm
Location: Reigate, Surrey

Sun Feb 15, 2015 10:18 am

If the chrome bumpers are good then they are worth a bit.

Sell them and buy some painted bumpers.

Ben
RM2186
E30 Zone Addict
E30 Zone Addict
Posts: 4511
Joined: Sun Sep 18, 2005 11:00 pm
Location: Washington, Tyne & Wear

Sun Feb 15, 2015 11:12 am

BenHar wrote:If the chrome bumpers are good then they are worth a bit.

Sell them and buy some painted bumpers.

Ben
It's a facelift car with placcy bumpers
1987 Tech1 325i Sport

DanThe
E30 Zone Team Member
E30 Zone Team Member
Posts: 28641
Joined: Sat Sep 10, 2005 11:00 pm
Location: Staffs
Contact:

Sun Feb 15, 2015 11:18 am

Still got the beer goggles on Ben? :D

I will have some 4 pots for sale in the near future BTW Ian, you will colour code it a hell of a lot cheaper by buying already painted bumpers/mirrors
User avatar
BenHar
E30 Zone Addict
E30 Zone Addict
Posts: 3068
Joined: Sun Jul 11, 2010 11:00 pm
Location: Reigate, Surrey

Sun Feb 15, 2015 11:31 am

DanThe wrote:Still got the beer goggles on Ben? :D
:D

Just saw the silveryish colour in the first picture. Didn't look closely enough at the valance.

:o:

Ben
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Sun Feb 15, 2015 12:25 pm

DanThe wrote:Still got the beer goggles on Ben? :D

I will have some 4 pots for sale in the near future BTW Ian, you will colour code it a hell of a lot cheaper by buying already painted bumpers/mirrors
Hi Dan

Sounds good, let me know some more when the time comes and you might as well fit them along with everything else.

Do you think the 4pots improve braking in general or just stops fade on track?

What are the best pads you guys have found? I thought the DS2500 were good on the Clio Cup and Carbon Lorraine pads were quite good on the Lotus but loada of dust.

I like the look of the 318is front so will look out for the bumper and bottom bit whatever that's called (no, why didn't you buy a 318is comments please :-))
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Sat Mar 14, 2015 4:53 pm

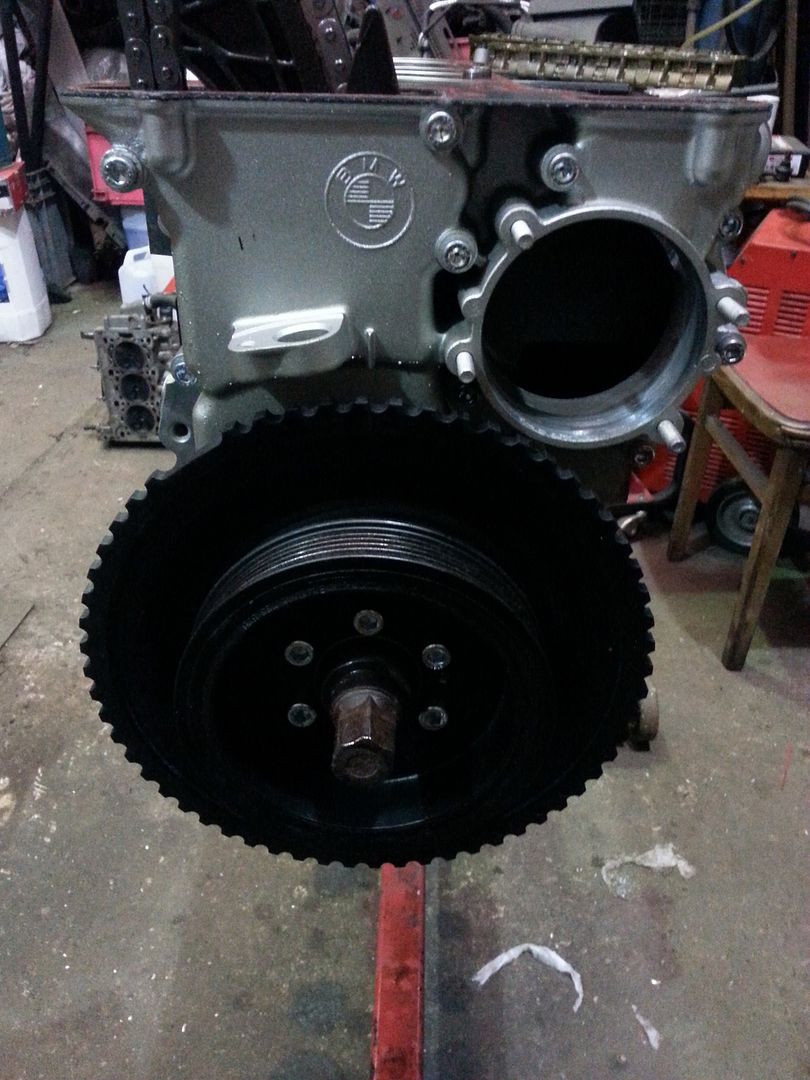

DanThe has kindly agreed to build and install a snarling 3.0 m52 for me, here's some engine porn of the engine in its current state. He's also managed to source me some Schrick cams!!

We'll be going for a live mapping session to finish things off



Image :cool:
Last edited by Muzz2676 on Sat Mar 14, 2015 6:11 pm, edited 3 times in total.
whiterhino
E30 Zone Camper
E30 Zone Camper
Posts: 1019
Joined: Sun Jan 30, 2005 11:00 pm
Location: south london

Sat Mar 14, 2015 5:51 pm

There's no replacement for displacement . :D
M3 cecotto ultimate driving machine
jmc330i
Engaged to the E30 Zone
Engaged to the E30 Zone
Posts: 6621
Joined: Mon Jan 10, 2005 11:00 pm
Location: Somerset

Sat Mar 14, 2015 6:28 pm

Good man :D
I'm looking forward to seeing this finished 8)
James
'91 325i Sport
'93 318i touring 16v
DanThe
E30 Zone Team Member
E30 Zone Team Member
Posts: 28641
Joined: Sat Sep 10, 2005 11:00 pm
Location: Staffs
Contact:

Sat Mar 14, 2015 9:34 pm

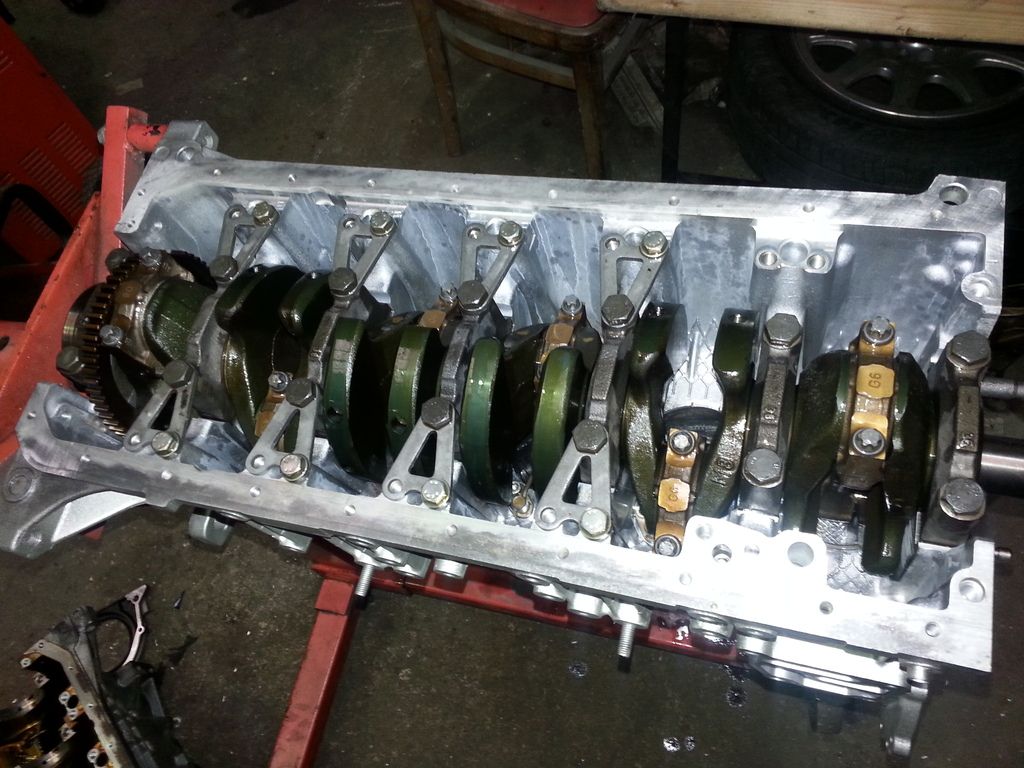

Wheres the block pics!
TheMeathead
E30 Zone Regular
E30 Zone Regular
Posts: 312
Joined: Thu Jun 04, 2009 11:00 pm
Location: Hastings, East Sussex

Sat Mar 14, 2015 9:44 pm

This should be an awesome build, looking forward to see how she performs As I'm building an m50b30nv all I need is some spikey cams winkeye
jimbom30cab
Tech 1 freak
Posts: 7634
Joined: Mon Oct 12, 2009 11:00 pm
Location: in the garage

Sat Mar 14, 2015 9:45 pm

Nice work, can't wait to see what this puts out on the rollers

very :cool:
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Sat Mar 14, 2015 10:13 pm

Ahhhh, block pics :mad: I've done a little man wee in my pants

I'm drip feeding to maintain the suspence :-)




oomz1975
E30 Zone Addict
E30 Zone Addict
Posts: 2019
Joined: Mon Feb 09, 2009 11:00 pm
Location: London UK

Sat Mar 14, 2015 10:38 pm

Nice :cool:
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Sun Mar 15, 2015 12:45 am

Nice work. :cool:
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
JF008
E30 Zone Regular
E30 Zone Regular
Posts: 632
Joined: Tue Jan 17, 2012 11:00 pm
Location: Fort McMurray

Sun Mar 15, 2015 8:35 am

Subscribed :)
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Sun Mar 15, 2015 1:53 pm

Bought this to be refurbed 3.64 ZF LSD to go in at the same time as the engine
maxfield
Old Skooler
Old Skooler
Posts: 15186
Joined: Sat Nov 26, 2005 11:00 pm
Location: Mansfield

Sun Mar 15, 2015 2:31 pm

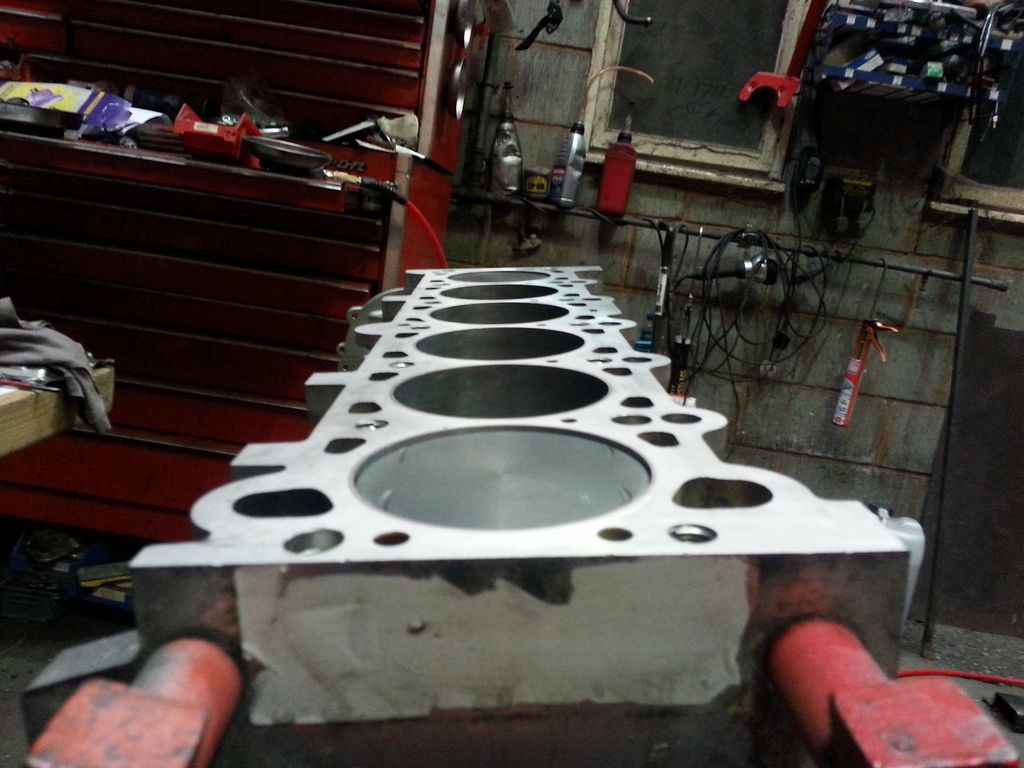

That block looks shit hot a‘a
User avatar
brettski
E30 Zone Camper
E30 Zone Camper
Posts: 1046
Joined: Mon Jan 10, 2005 11:00 pm
Location: stafford

Sun Mar 15, 2015 4:23 pm

I looked at this engine the other day whilst at Dan's look forward to seeing the progress! :cool:
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Sun Mar 15, 2015 4:52 pm

I need to get a decent exhaust on it, I reckon that or brake upgrade will be next
bss325i
E30 Zone Team Member
E30 Zone Team Member
Posts: 24536
Joined: Sat Jan 20, 2007 11:00 pm
Location: London/Surrey

Mon Mar 23, 2015 9:14 pm

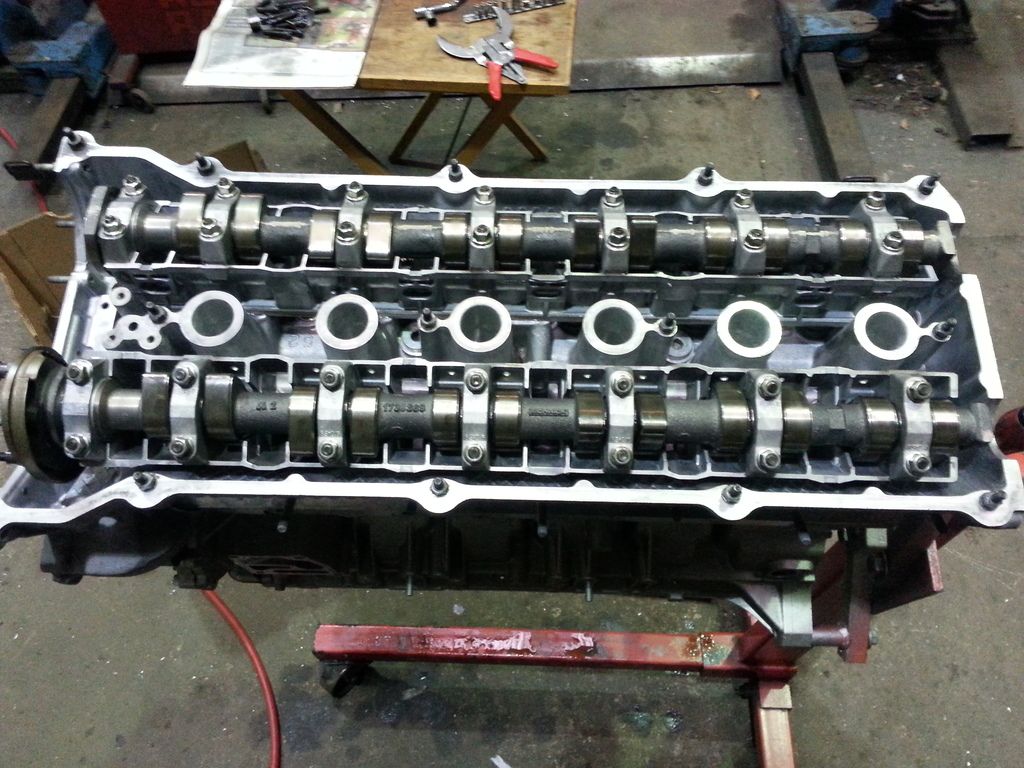

Schrick sticks! :cool:
http://www.bmrperformance.co.uk

BMW and MINI specialist - Gatwick
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Mon Mar 23, 2015 9:21 pm

Absolute work of art, I want to get another one built just to look at!!!!!
DanThe
E30 Zone Team Member
E30 Zone Team Member
Posts: 28641
Joined: Sat Sep 10, 2005 11:00 pm
Location: Staffs
Contact:

Mon Mar 23, 2015 10:34 pm

bss325i wrote:Schrick sticks! :cool:
I was looking for cams for this engine, these came up and I had to think hard about letting Ian have them :)
Special tools needed to get them pulled down, cant get the caps on at all even with all the lifters drained/serviced
AndyZippy
E30 Zone Regular
E30 Zone Regular
Posts: 319
Joined: Tue Apr 24, 2012 11:00 pm
Location: Glastonbury, UK

Tue Mar 24, 2015 10:17 am

Super jealous of that spankingly clean block ;)
Intrigued to see what this puts out ont he rollers once remapped. love the white wheels too!

*Dan, i promise i'll get those S52 cams in and get up to Circuit Motors asap ;)
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Tue Mar 24, 2015 11:15 am

DanThe wrote:
bss325i wrote:Schrick sticks! :cool:
I was looking for cams for this engine, these came up and I had to think hard about letting Ian have them :)
Special tools needed to get them pulled down, cant get the caps on at all even with all the lifters drained/serviced
You are a true gent, you knew it made sense!!!
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Fri Apr 03, 2015 5:47 pm

So I was having a moan about the old girl not stopping and Dan has come up with a plan for a big disk conversion, he's going to space the caliper out with a fabricated bracket.

I'm also seeing if I can find some pennies under the sofa to fit a full Fritz system, I would like to do this at a later stage but we're going for a live remap so it kinda makes sense to do it before hand
User avatar
Muzz2676
E30 Zone Regular
E30 Zone Regular
Posts: 353
Joined: Wed Dec 24, 2014 11:00 pm

Fri Apr 03, 2015 5:50 pm

More piccies....sump is done.


DanThe
E30 Zone Team Member
E30 Zone Team Member
Posts: 28641
Joined: Sat Sep 10, 2005 11:00 pm
Location: Staffs
Contact:

Fri Apr 03, 2015 6:12 pm

Sump is sand blasted, acid cleaned and painted same as the block :thumb:
Post Reply
