Rear subframe bushes

Need technical Q/A then you're in the right place
Post Reply
User avatar
RicardoD
E30 Zone Newbie
E30 Zone Newbie
Posts: 27
Joined: Thu Oct 10, 2013 10:00 pm
Location: Cornwall

Tue Jul 01, 2014 3:21 pm

So, having looked through the guide on here, I've been going at it hammer and tong on the bushes and instead of the bush falling out, one side of my subframe has dropped away from the car!? Is this normal, or is it right fucked?

Thanks all

Richard
Grrrmachine
E30 Zone Wiki / Team Member
E30 Zone Wiki / Team Member
Posts: 8040
Joined: Sat Feb 09, 2008 11:00 pm
Location: Warsaw, Poland

Tue Jul 01, 2014 3:44 pm

Of course it's normal. The bush (via the bolt that runs through it, which you removed) holds the subframe to the car, so attacking the bush will make the subframe drop.

What's highly likely is that the aluminium core of the bush has snapped, leaving a remnant inside the body shell, so you'll want the subframe dropped on both sides so that you can chisel the remnants out.
User avatar
aimlessrock
E30 Zone Squatter
E30 Zone Squatter
Posts: 1731
Joined: Sun Dec 06, 2009 11:00 pm
Location: Manchester

Tue Jul 01, 2014 10:27 pm

Remove the beam and change the bushes on the bench... It is possible to do them whilst on the car
but it looks difficult....this was one job I had a garage do as it just looked like a pain.
E30 320i Convertible (1989)
190 Mercedes (1988)

"there is nothing more expensive than a cheap E30"
User avatar
davidt
Pompey Council 4 door deviant
Posts: 2680
Joined: Sat Feb 18, 2006 11:00 pm
Location: portsmouth

Wed Jul 02, 2014 11:50 am

RicardoD wrote:So, having looked through the guide on here, I've been going at it hammer and tong on the bushes and instead of the bush falling out, one side of my subframe has dropped away from the car!? Is this normal, or is it right ******?

Thanks all

Richard
Hi Richard, as Grrr says the alloy centre tube of the bush that fits in the car body corrodes and sticks in its locating tube, it may help if you jack the side up that has dropped to even the weight then use a long bar to rock the stuck side but have some support under the back axle, you can remove the beam bushes in situ but its easier with the tool. did mine in a couple of hours with it, my mate pimpmobil on the zone makes them, he has one on Ebay now. sent you a pic so you may be able make something like it.
Cheers Dave.

I have a spread sheet and I am not afraid to use it
User avatar
RicardoD
E30 Zone Newbie
E30 Zone Newbie
Posts: 27
Joined: Thu Oct 10, 2013 10:00 pm
Location: Cornwall

Wed Jul 02, 2014 8:23 pm

Thanks guys! Is it possible to remove the beam without removing the diff and other gubbins attached to it?
Grrrmachine
E30 Zone Wiki / Team Member
E30 Zone Wiki / Team Member
Posts: 8040
Joined: Sat Feb 09, 2008 11:00 pm
Location: Warsaw, Poland

Wed Jul 02, 2014 9:26 pm

That's a bit like asking "is it possible to remove your neck without disconnecting your head?" :D

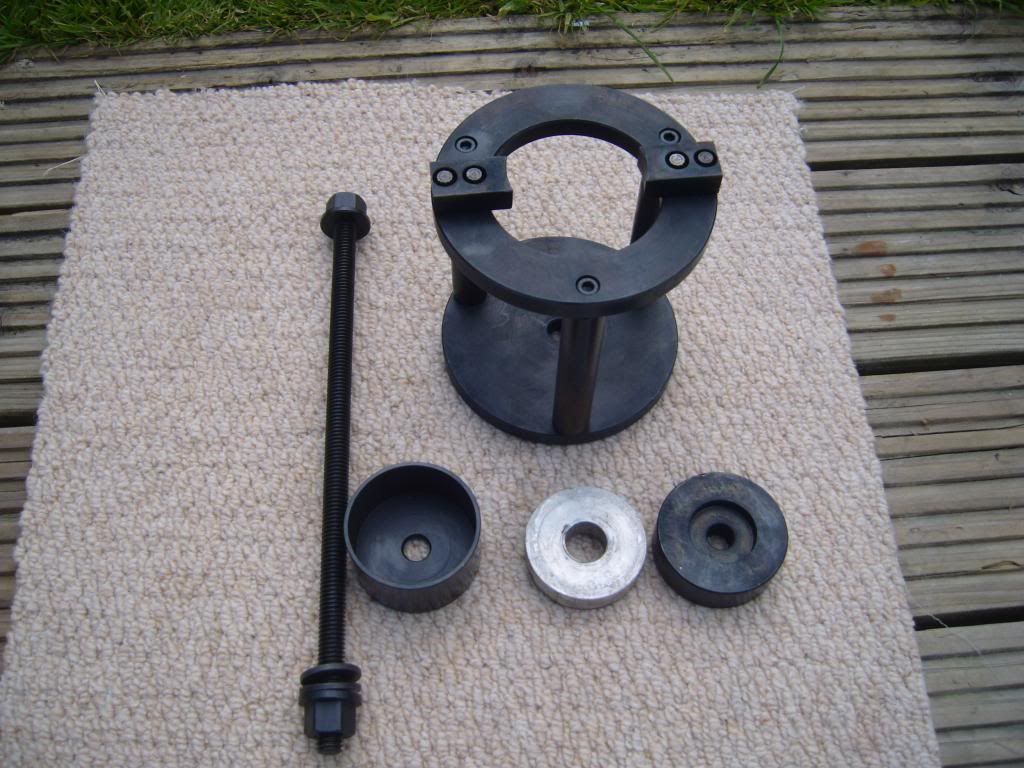

You can drop the beam and diff down as a unit by about six inches, but you really don't want to. Either use the tool pictured above, or get ready to drop the exhaust, diff, trailing arms and rear beam. You might thank us later when you discover that your rear brake lines are completely shot and need replacing while you're back there :)
User avatar
RicardoD
E30 Zone Newbie
E30 Zone Newbie
Posts: 27
Joined: Thu Oct 10, 2013 10:00 pm
Location: Cornwall

Wed Jul 02, 2014 9:36 pm

Oh dear! I have been attempting to use a puller but it's proving to be rather difficult and just seems to be pushing the car up,I'm a little worried I might cause some damage if I'm not careful!

Anyone done this with a puller?
User avatar
RicardoD
E30 Zone Newbie
E30 Zone Newbie
Posts: 27
Joined: Thu Oct 10, 2013 10:00 pm
Location: Cornwall

Wed Jul 02, 2014 9:38 pm

So, simply what I'm trying to say is, what can the puller push against?
Grrrmachine
E30 Zone Wiki / Team Member
E30 Zone Wiki / Team Member
Posts: 8040
Joined: Sat Feb 09, 2008 11:00 pm
Location: Warsaw, Poland

Wed Jul 02, 2014 9:41 pm

If a puller could do it, we wouldn't need the 100-quid tool pictured above :wink:
User avatar
RicardoD
E30 Zone Newbie
E30 Zone Newbie
Posts: 27
Joined: Thu Oct 10, 2013 10:00 pm
Location: Cornwall

Wed Jul 02, 2014 9:44 pm

Haha, yeah I guess so! Looks like the subs coming out then, it's all a bit dirty and rusty down there so will probably be a good thing in the long run!
User avatar
Brianmoooore
E30 Zone Team Member
E30 Zone Team Member
Posts: 47555
Joined: Mon Jan 10, 2005 11:00 pm

Wed Jul 02, 2014 10:21 pm

A £100 tool is nice where time is serious money, but the old bushes can be removed by drilling the rubber out of the way with a couple of appropriately sized deep rotary hole saws, after which a hacksaw blade (preferably powered) can be used to cut through the remaining outer ring.
The new bushes aren't particularly difficult to fit with the aid of a couple of cup shaped heavy duty washers and a length of threaded rod, along with a generous helping on non permanent lubricant, such as washing up liquid.
User avatar
RicardoD
E30 Zone Newbie
E30 Zone Newbie
Posts: 27
Joined: Thu Oct 10, 2013 10:00 pm
Location: Cornwall

Thu Jul 03, 2014 9:14 am

I have 3 days to get the new ones in before it has to be out the workshop for a month!, I had some welding to do so the exhaust tank etc are already out.

The 'core' of one of the bushes has come out using the hole saw method. With all the rubber out the way is it possible to begin to 'crush' the outer shell of the bush by hitting the lip with a cold chisel?
Grrrmachine
E30 Zone Wiki / Team Member
E30 Zone Wiki / Team Member
Posts: 8040
Joined: Sat Feb 09, 2008 11:00 pm
Location: Warsaw, Poland

Thu Jul 03, 2014 9:47 am

yeah, that's exactly how you get the outer shell out. I used a little 10mm-wide chisel that worked a treat.

They look like this when they come out:

User avatar
sanitroc1
E30 Zone Newbie
E30 Zone Newbie
Posts: 244
Joined: Fri Sep 28, 2007 10:00 pm
Location: North Somerset

Thu Jul 03, 2014 4:21 pm

Try looking at this
http://www.e30zone.net/modules.php?name ... highlight=
mine is still going strong .
Steve .
leeparkes
Married to the E30 Zone
Married to the E30 Zone
Posts: 9538
Joined: Thu Jan 03, 2008 11:00 pm
Location: Black country

Thu Jul 03, 2014 6:06 pm

I tackled it with a little heat, some fairy liquid and a trolley jack.

http://www.e30zone.net/modules.php?name ... t=subframe
Cypriotgeeza wrote:I done both my mates in my old 318is
felt so proud,even tried it with a E30 325i and got put in my place.. :o:
User avatar
pimpmobil
Old Skooler
Old Skooler
Posts: 361
Joined: Sat Aug 26, 2006 10:00 pm
Location: portsmouth (copnor)

Fri Jul 04, 2014 4:35 pm

Look on you tube on how too remove bush (BMW E30 subframe bushing tool ) It's so easy. All done with the subframe in place.
Hope this helps.
User avatar
RicardoD
E30 Zone Newbie
E30 Zone Newbie
Posts: 27
Joined: Thu Oct 10, 2013 10:00 pm
Location: Cornwall

Fri Jul 04, 2014 6:12 pm

Thanks everyone, it went really well today! Are there any torque settings I need to be aware of?
User avatar
RicardoD
E30 Zone Newbie
E30 Zone Newbie
Posts: 27
Joined: Thu Oct 10, 2013 10:00 pm
Location: Cornwall

Fri Jul 04, 2014 6:38 pm

Thanks everyone, it went really well today! Are there any torque settings I need to be aware of?
