E30 Dyno Graphs

Overview

Here's an idea I came up with while searching for information for my own engine build. A one stop page showing multiple dyno graphs of various engines in different states of tune, from standard through increased capacity to forced induction.

Please note that the results of these graphs will be unique to the individual engine being tested at the time in those conditions so there is no guarentee you'll achieve exactly the same results with the same mods. With the addition over time of more graphs I also hope that they'll be plenty of graphs for standard engines to help show how good results can still be achieved with these engines many years after they rolled off the production line.

M10

M1020 - teamalsoran

2.0 M10

Ported 121 head

12.1 CR

Lester Owen reduced overlap 336 cam

45mm jenveys

M1022 Turbo - teamalsoran

2.2 litre m10 turbo

Schrick 284 cam

T34 turbo

Lots of lines on above graph, thats high and low boost settings

M10B25 - teamalsoran

-*Lower Graph*-

240bhp 2.5 litre m10

Custon Accratlie pistons in a 2.5 s14 bottom end

M10 121 head

12.1CR

Schrick 336 cam

50mm Jenvey throttle bodies

M20

M20B25

M20B25 - bss325i

'89 325i Sport with low compression ration 8.8:1 M20B25.

Before and after BTB2 manifold, no other mods.

M20B25 - Simon

Redline - Standard

Purple Line - Hottuning exhaust manifold, no fueling adjustments made

M20B25 - Hoobs

Standard

M20B25 - Hoobs

This is after a service & running a 'Speedtouch' wild chip and a 6 branch of unconfirmed origin

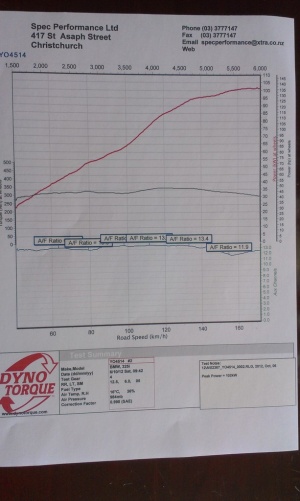

M20B25 - nzbimmer

Standard engine.

At the wheels figures.

M20B25 - gaszman

Standard high comp prefaclift engine

M1.0 Motronic

m20b25 - hongkongfuey

stock 2.5

cam

bbtb (home made)

hottuning manni (no x pipe)

m30 injectors and afm

home made intake elbow

dmcl chip

lightened flywheel

M20B25 - nadz325i

BTB 6 Branch

BBTB

ITG INduction Kit

Schrick 284/272 CAM

Before MAF(with schrick, BBTB, 6 Branch and ITG);

180.6 bhp @ 6221 rpm

164.1 lb.ft @ 5314 rpm

After MAF;

189 BHP @ 6332rpm

173.5 lb.ft @ 5357 rpm

At the wheels figures.

M20B27

M20B27 - Simon13

Racing Dynamics 6 branch with full scorpion

198bhp and 220lbs

M20B27 - Oguz327

2.7 M20, fully lightened, balanced and blueprinted built by A Tech

285/285 cat camshaft

BTB 6 branch

BBTB

Rolling road remap

ITG filter

Full scorpion system

M1.3 Motronic + chip

M20B27 - Oguz327 (Megasquirt)

2.7 M20, fully lightened, balanced and blueprinted built by A Tech

285/285 cat camshaft

BTB 6 branch

BBTB

Rolling road remap

ITG filter

Full scorpion system

Megasquirt for engine management, with AFM delete and wasted spark

MAP sensor for load(speed Den)

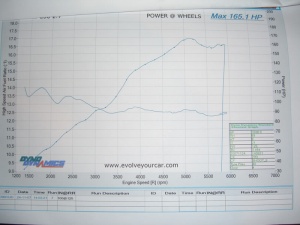

M20B27 - oakey

Standard head

Bexley Block

Megasquirt for engine management, with AFM delete and wasted spark

M20B27 - oakey

135mm rods

Alpina pistons

ETA crank

11.016:1 CR

ITBs

280/280 cat camshaft

mild head port

Megasquirt for engine management, with AFM delete and wasted spark

TPS only (Alpha-N algo)

M20B27 - Daimlerman

525e Block

731 Head

Miller MAF

thumb|none

M20B28

M20B28 - Bullet_Ride

Schrick 284 with stock valve springs.

Block shaved 0.5mm

Pistons had valve reliefs cut deeper due to only 0.5mm valve clearance on the intake valve.

On a hot summer day with the car running rich because of a bad O2 sensor this is what I put down...

M20B28 - stonesie B25 low comp pistons, block and head both skimmed (minimal on the head, 0.5mm on the block to retain standard squish) approx 9.7:1 CR

M52B28 crank

M20B20 rods

CatCams 273/273 with vernier

Lightweight flywheel

A Tec 2.8 chip tweaked for LPG

BBTB

Ultrasonicly cleaned B25 injectors

Standard exhaust manifold/down pipes, new genuine middle box and a magnex back box

Graph shows at the wheel figures, flywheel converted figures estimated at 206 bhp and 203Lb:Ft

M20B28 - goosiegander M20 2 ltr block bored to 84.0mm Single vanos M50B28 crank M20 2 ltr conrods M20 2.5 facelift (low comp) pistons Catcam 285/285 degree camshaft 885 headcasting BBTB Hottuning 6 branch and scorpian system 2.8 Motronic chip

M20B28 - goosiegander M20 2 ltr block bored to 84.0mm Single vanos M50B28 crank M20 2 ltr conrods M20 2.5 facelift (low comp) pistons Catcam 285/285 degree camshaft 885 headcasting BBTB Hottuning 6 branch and scorpian system MAF Conversion

M20B31

M20B31 - reggid

M20B31 - 3086cc

10.5:1CR

BTB2

BBTB

standalone

catcams 298/285

M30

M30B35 - driftmonkey

Standard

M30B35 B10 Alpina- leeparkes

257bhp @ 5450rpm BUT it made 285 lb ft @ 4200rpm.

Alpina B10

Forged custom mahle pistons (high comp)

M5 conrods

Flowed head with hemi combustion chambers

Larger valves

268 degree cam

Remapped ECU

M30B35 Turbo- Toby_Unna

Turbo Conversion

Megasquirt

M42

M42B18 - Magpie

Evolve 18 bhp chip with k&n panel filter

M42B21 - tim_s

M47 crank

custom rods and forged JE pistons

fully lightened and balanced

late spec cyl head with +2mm valve throats, 3 angled seats, skimmed 0.2mm to give even higher CR

259/10.4 catcams

megasquirt 2 extra

Custom MLS HG, total seal rings, ARP rod bolts

serpentine belt, coil on plug

M50

M50B25 - Monkey

ECU chip by EAT

M30 air box

2.5" bore single pipe exhaust system

M50B25 Turbo - craigieeb

It's a standard 2.5 M50

ARP studs

MLS Gasket

440cc injectors

Borg Warner Turbo

External Tial wastegate

VEMS ecu

running 1.3 bar of boost (controlled By GReddy PRofec B-spec II boost controller)

M52

M52B28 - DanThe

M50 Inlet Manifold

M52B30 - DanThe M52 steel liner block

E46 330i crank gear

M50 Inlet Manifold

S14

S14B26 - teamalsoran

2.4litre s14 turbo

2.3 215bhp top end

Custom pistons

T38 turbo on low boost

Huge intercooler

• spikes in graph low down was a gearchange*

S14B26 - teamalsoran

-*Upper Graph*-

2.6 litre 275bhp S14

95.34mm Wosner pistons

11.5:1 CR

91mm stroke steel crank

Ported head

Schrick 292/284 cams

S50

S50B30 - billgatese30

Standard.

Run 1 -

240.5bhp @ 6870rpm - at rear wheels

291.2bhp @ 7021rpm - at flywheel

247.0 lbft @ 4891rpm - max tourque

Run 2-

245.1bhp @ 6955rpm - at rear wheels

293.5bhp @ 6955rpm - at flywheel

248.5 lbft @ 4379rpm - max tourque.
